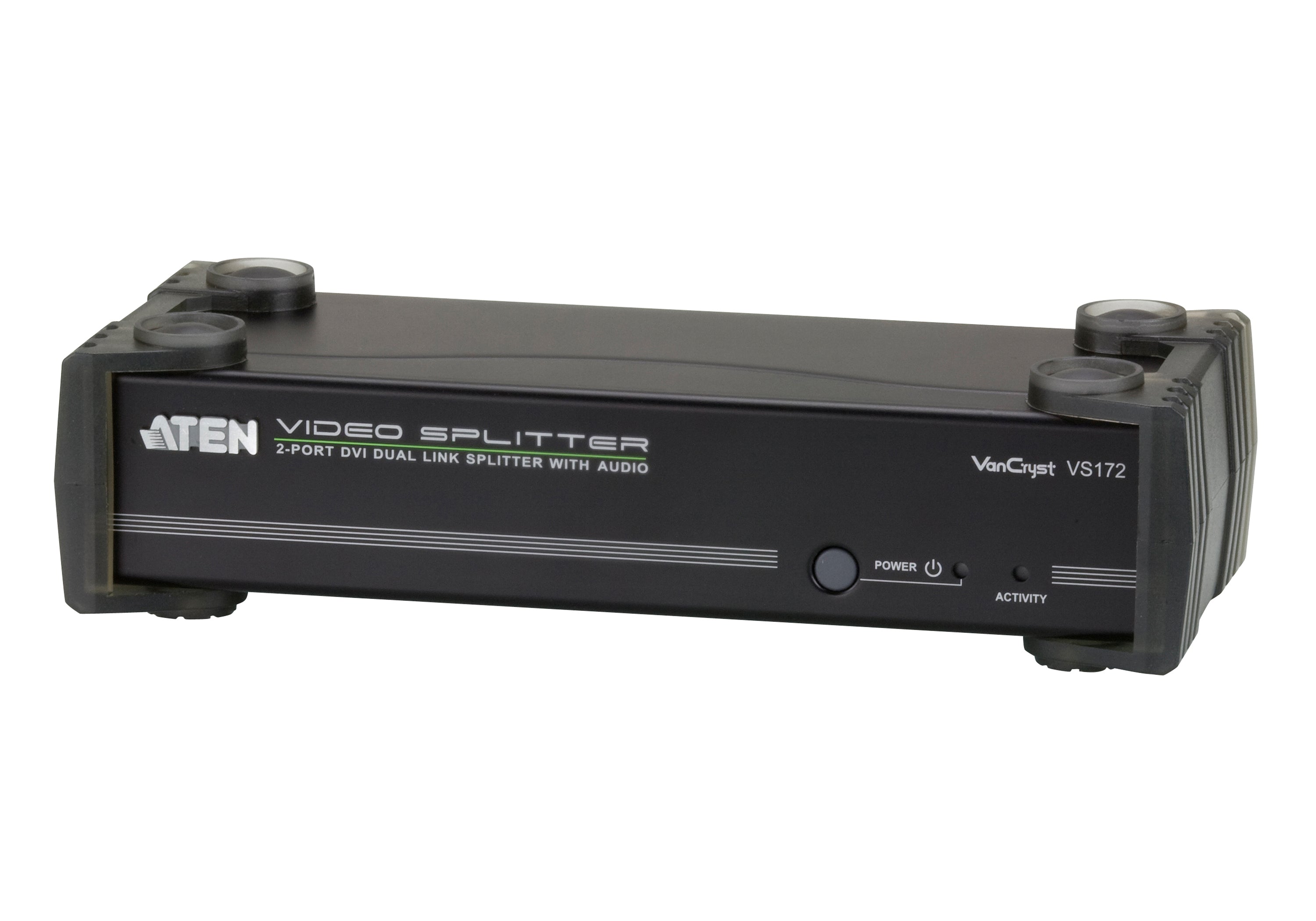

Aten Splitter, DVI, 2 Port Dual Link with Audio - VS172
• Displays DVI audio/video to two DVI-compatible monitors or projectors
• Superior video quality - up to 2560 x 1600 @ 60 Hz including 2K-resolution (2048 x 2048 @ 60 Hz)
• RS-232 Chain Control – use RS-232 commands to control cascaded devices via a DVI Cable
• Audio enabled
The VS172 2-Port DVI Dual Link Splitter with Audio combines DVI quality video and audio, taking signals from an audio/ video source and replicating them to two audio/video outputs. This video splitter uses dual link technology, which offers high bandwidth capacity for added transmission power and faster refresh rates, thereby providing better video quality of viewing resolutions up to 2560 x 1600.

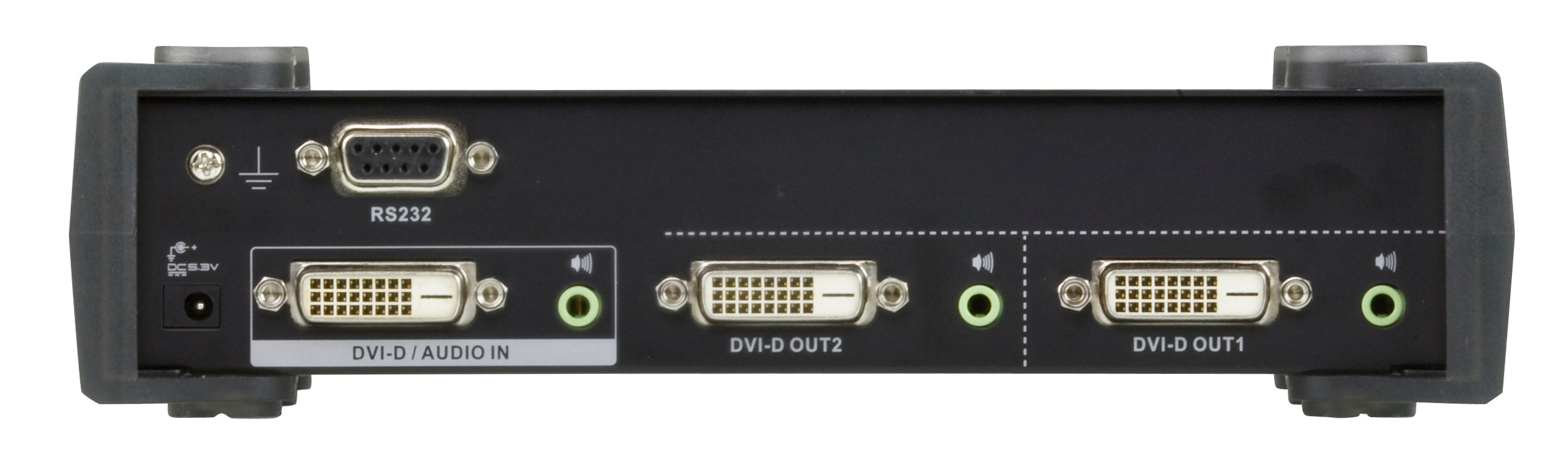

The built-in bi-directional RS-232 port on the rear panel allows the splitter to be controlled through a Control Unit, PC, and/or home automation/home theatre software package for complete system integration.
The VS172 is easy to operate and can be cascaded to three levels, handling up to 8 monitors, which makes them the ideal solution for situations such as:
a) Broadcasting video information to the public (news headlines, stock prices, airline and train schedules, etc.)
b) Company training facilities
c) Classroom instruction
Package Contents
1x VS172 2-Port DVI Dual Link Splitter with Audio
1x Power Adapter
1x User Instructions
|
Video Input |
|
|
Interfaces |
1 x DVI-D Female (White) |
|
Impedance |
100 Ω |
|
Max. Distance |
1.8 m |
|
Video Output |
|
|
Interfaces |
2 x DVI-D Female (White) |
|
Impedance |
100 Ω |
|
Video |
|
|
Max. Data Rate |
13.5 Gbps (2.25 Gbps Per Lane) |
|
Max. Pixel Clock |
225 MHz |
|
Max. Resolution |
Up to 2560 x 1600 |
|
Max. Distance |
Up to 5 m |
|
Audio |
|
|
Input |
1 x Mini Stereo Jack Female (Green) |
|
Output |
2 x Mini Stereo Jack Female (Green) |
|
Control |
|
|
RS-232 |
Connector: 1 x DB-9 Female (Black) |
|
EDID Settings |
EDID Mode: Default / Port 1 / Auto |
|
Connectors |
|
|
Power |
1 x DC Jack |
|
Power Consumption |
DC5.3V:3.6W:17BTU |
|
Environmental |
|
|
Operating Temperature |
0-50°C |
|
Storage Temperature |
-20 - 60°C |
|
Humidity |
0 - 80% RH, Non-Condensing |
|
Physical Properties |
|
|
Housing |
Metal |
|
Weight |
0.68 kg ( 1.5 lb ) |
|
Dimensions (L x W x H) |
21.00 x 8.80 x 5.55 cm |
|
Carton Lot |
5 pcs |
|
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
