Aten Control Keypad, 8 Button - VK108US
• Key pad - provides physical connection to the ATEN Control System
• Fully customizable with 14 layout combinations of 4 to 8 buttons; customized button engraving service
• Easy ID pairing with Control Box for Ethernet communication
• Available in black or white colour
The VK108US is a fully-customizable 8-button keypad designed for use with the ATEN Control System. The keypad provides an interface to control devices in a room from a standard wall mounted faceplate. Created with flexibility in mind, the one-gang keypad can be laid out in 14 different combinations of 4 to 8 buttons that snap together as easy as Lego’s. By connecting to the VK2200 / VK1200 / VK2100A / VK1100A Control Box or VK0100 / VK0200 Control Pad over a LAN, users will find it’s effortless using VK6000 software to configure the desired control of any connected device from the keypad. With the button’s ready to go, users have instant and smart control of the facilities from a keypad or keypads that can manage any device in the room. The VK108US is an affordable solution, perfect to serve as the primary interface in small meeting rooms, or as secondary device control in classrooms and conference centers.
Note: This model is also available in black colour – Part number: VK108US1, which is a built-to-order product. To place an order, please contact your regional ATEN representative.
Accessories:
*The power adapter for this product is sold separately. For more information about this accessory, see Accessories.

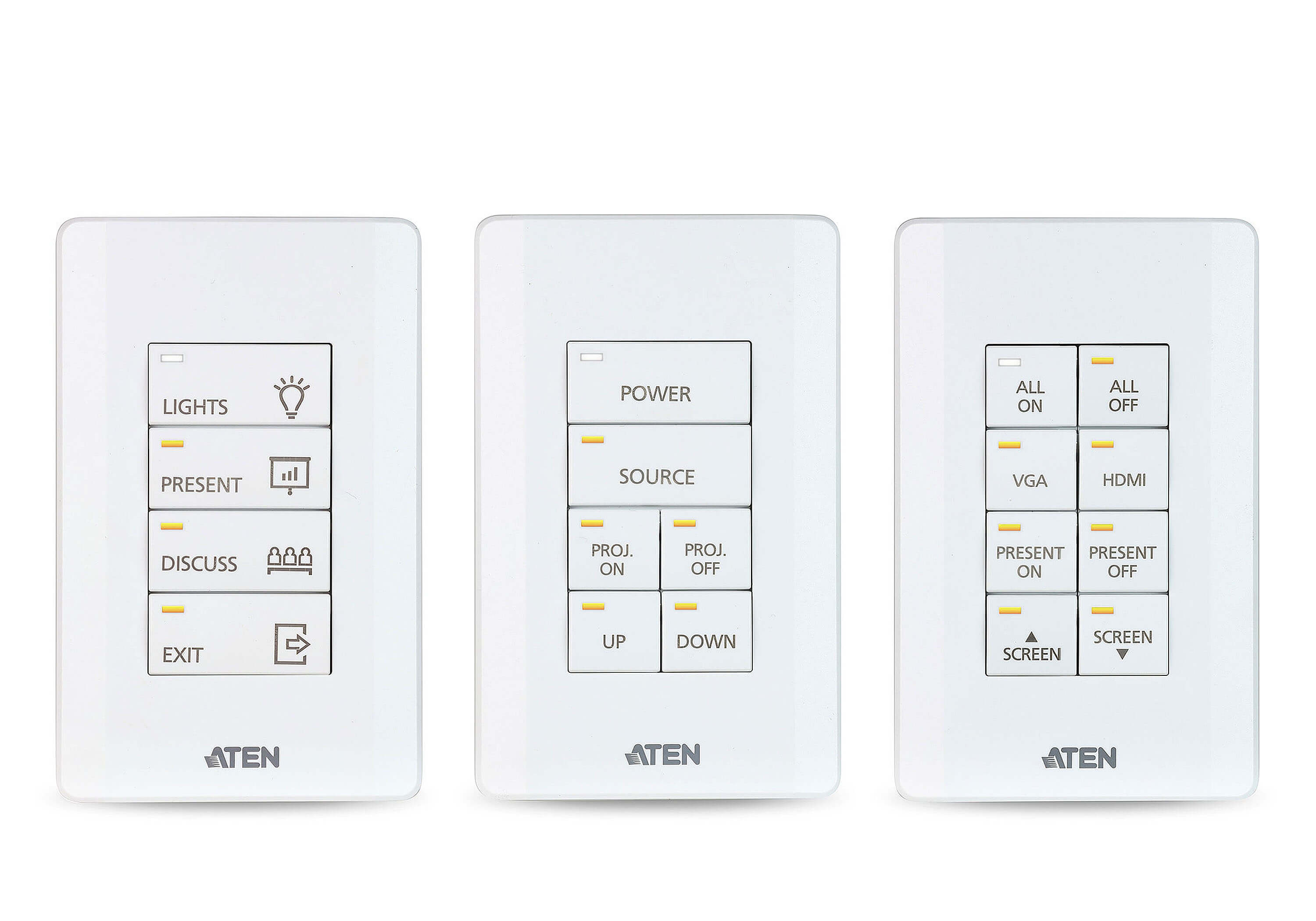

Keypad Layout Example
Custom button placement on the keypad can be set in 14 different combinations of 4 to 8 buttons.
|
Interfaces |
|
|
Ethernet |
• 1 x RJ-45 Female, 10/100Base-T |
|
Keypad Layout |
4~8 buttons customizable in 14 keypad layouts |
|
Switches |
|
|
Controller ID |
1 x 16-segment Switch |
|
Keypad ID |
1 x 8-segment Switch |
|
Reset Button |
1 x Semi-recessed Pushbutton |
|
Power Consumption |
DC5V:1.25W:6BTU |
|
Environmental |
|
|
Operating Temperature |
0 – 50°C |
|
Storage Temperature |
–20 – 60°C |
|
Humidity |
0 - 80% RH, Non-Condensing |
|
Physical Properties |
|
|
Housing |
Plastic |
|
Weight |
0.13 kg ( 0.29 lb ) |
|
Dimensions (L x W x H) |
11.63 x 7.06 x 3.89 cm |
|
Faceplate Dimensions (L x W x H) |
11.92 x 7.42 x 0.92 cm |
|
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
VK108US Datasheet PDF
