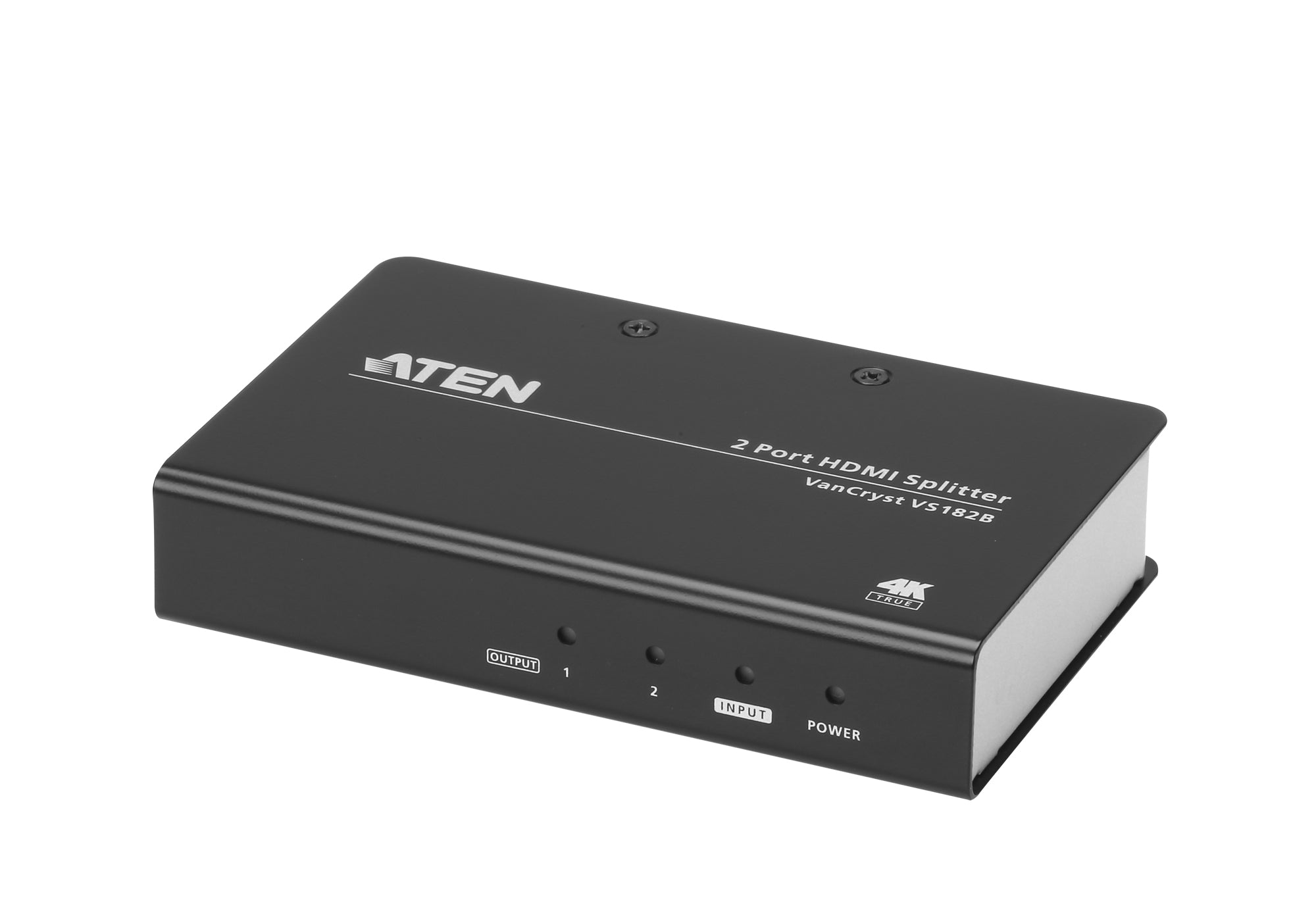

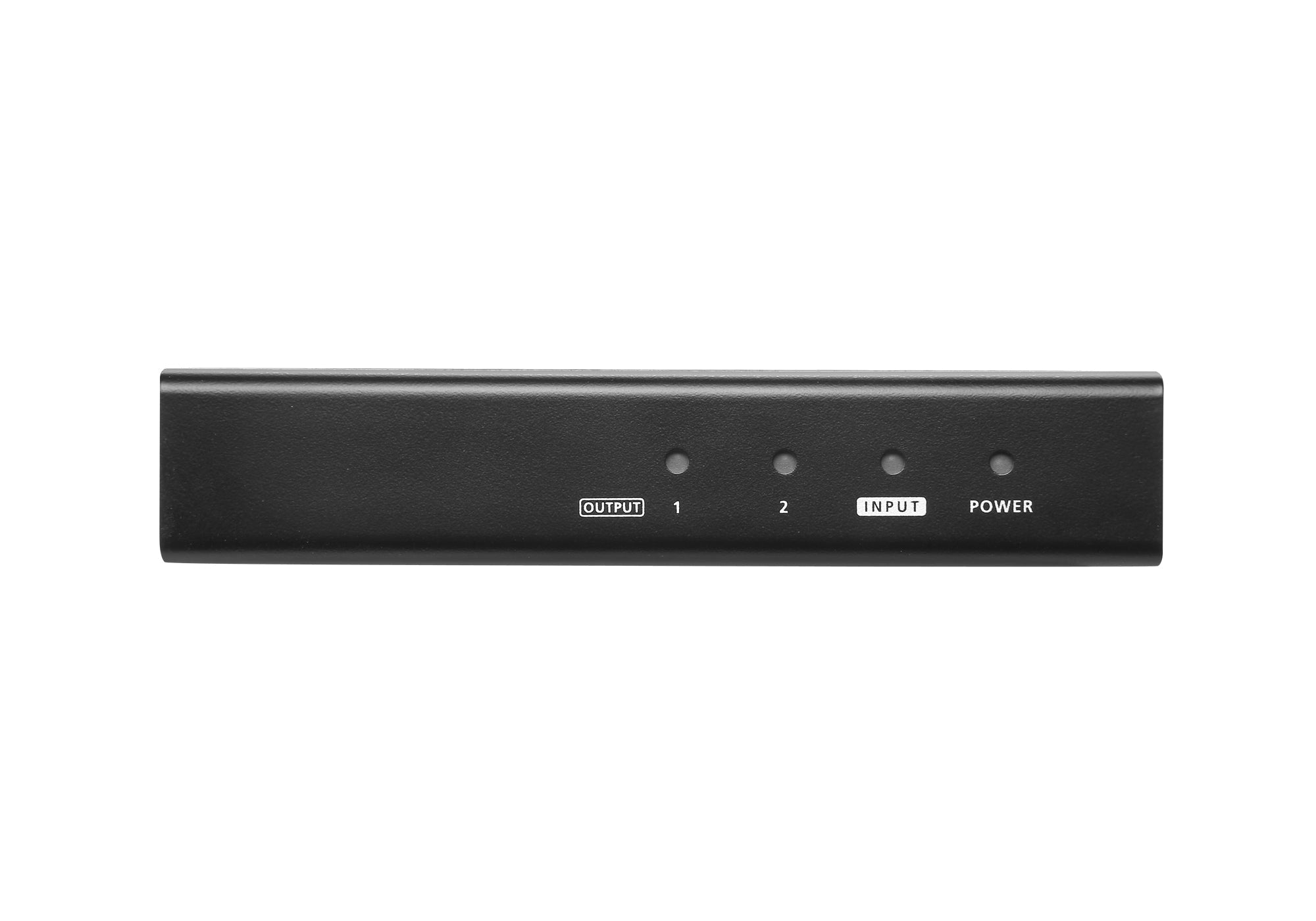

Aten Splitter, HDMI, 2 Port - VS182B
• Connects one HDMI source to two HDMI displays at the same time
• HDMI (3D, Deep Colour, 4K); HDCP 2.2 Compatible
• Max pixel clock rate up to 600 MHz
• Long distance transmission- up to 15 m(1920x1200)/ 1.8m (True 4K)*
The VS182B True 4K HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMI enabled equipment, such as DVD players, satellite set- top boxes and all HDMI monitors, displays, projectors, or TVs.
The VS182B True 4K HDMI Splitter is HDMI 2.0 compliant, 4K at 60Hz (4:4:4), and supports multiple streaming audio, making it effective for use with all HDMI displays in home theatre applications, as well as in corporate, educational and commercial settings.
Package Contents
- 1 x VS182B 2-Port True 4K HDMI Splitter
- 1 x Power adapter
- 1 x HDMI cable
- 1 x User Instructions
|
Video Input |
|
|
Interfaces |
1 x HDMI Type A Female (Black) |
|
Impedance |
100 Ω |
|
Max. Distance |
5m at 4K@60Hz (4:4:4) |
|
Video Output |
|
|
Interfaces |
2 x HDMI Type A Female (Black) |
|
Impedance |
100 Ω |
|
Max. Distance |
5m at 4K@60Hz (4:4:4) |
|
Video |
|
|
Max. Data Rate |
18 Gbps( 6 Gbps Per Lane) |
|
Max. Pixel Clock |
600 MHz |
|
Compliance |
HDMI (3D, Deep Colour, 4K); |
|
Max. Resolution |
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
|
Audio |
|
|
Input |
1 x HDMI Type A Female (Black) |
|
Output |
2 x HDMI Type A Female (Black) |
|
Connectors |
|
|
Power |
1 x DC Jack |
|
Power Consumption |
DC5V:4.24W:20BTU |
|
Environmental |
|
|
Operating Temperature |
0-40 °C |
|
Storage Temperature |
-20 - 60 °C |
|
Humidity |
0 - 80% RH, Non-Condensing |
|
Physical Properties |
|
|
Housing |
Metal |
|
Weight |
0.32 kg ( 0.7 lb ) |
|
Dimensions (L x W x H) |
12.50 x 8.00 x 2.50 cm |
|
Carton Lot |
20 pcs |
|
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
