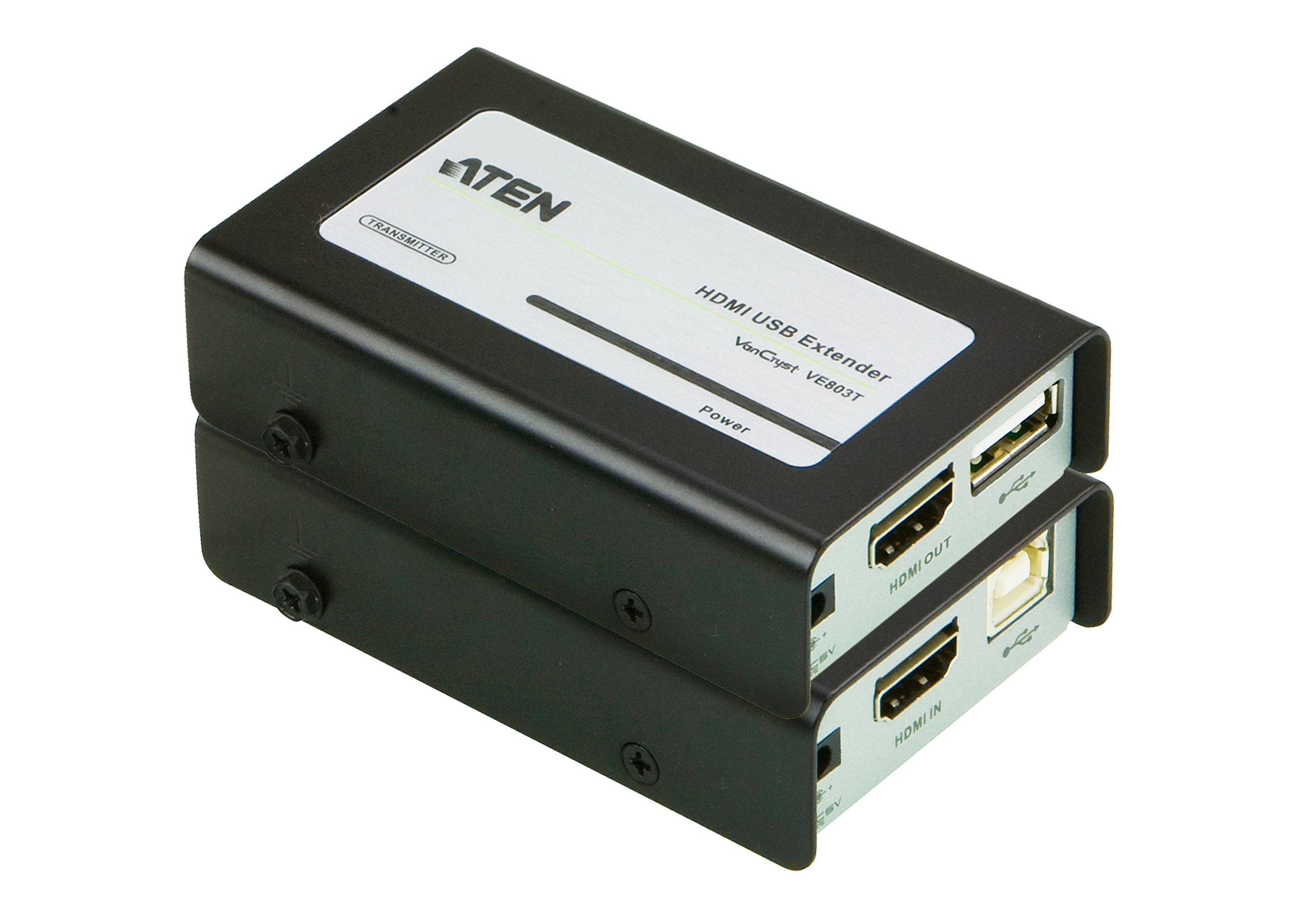

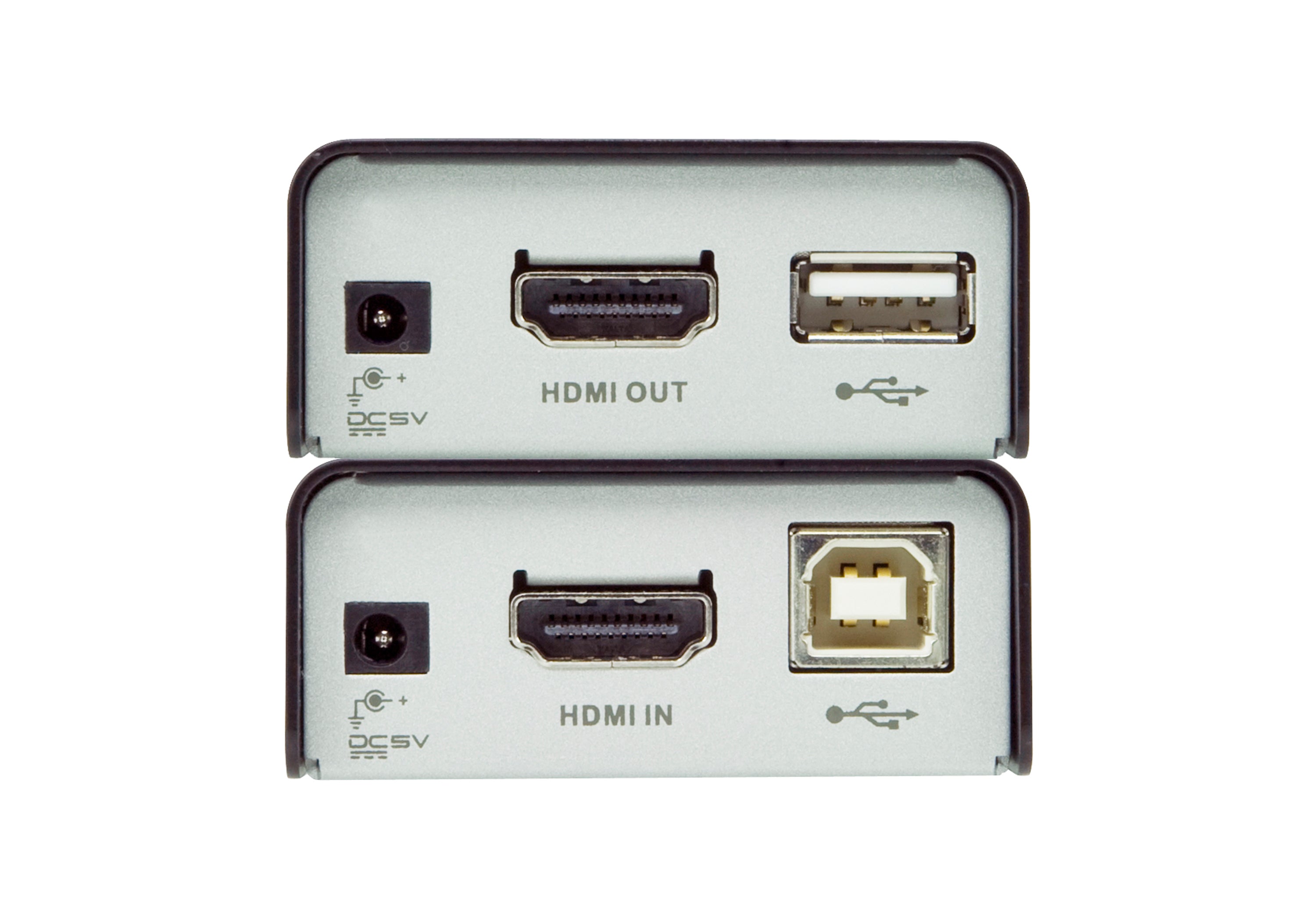

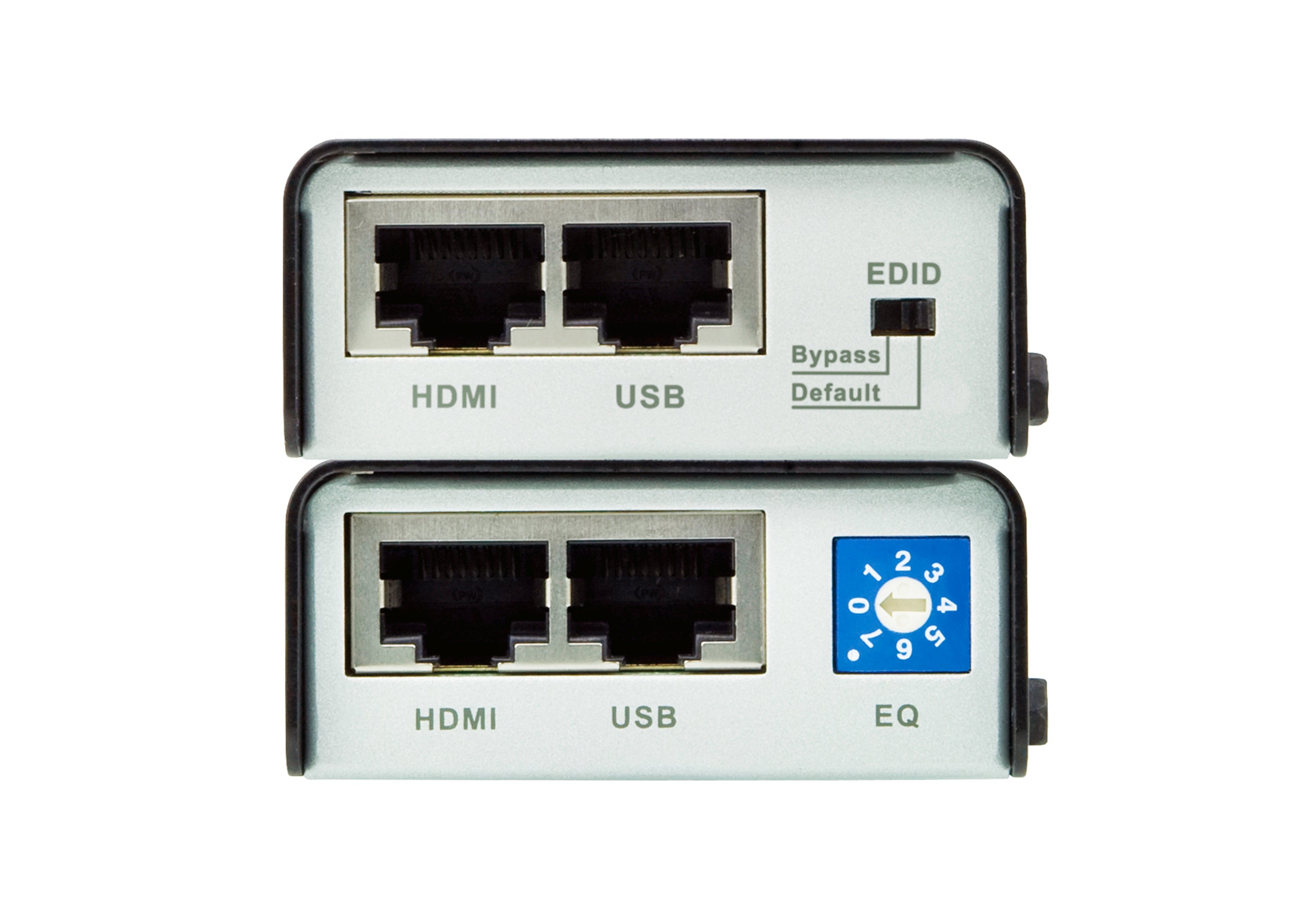

Aten Extender, HDMI, USB, Transmitter and Receiver - VE803
• Uses two Cat 5e cables to connect the local and the remote units
• Extends 1080p by 40m; extend 1080i by 60m
• Transparent USB Support – supports all USB 2.0 full speed device (up to 12 Mbps)
• HDMI (3D, Deep Colour); HDCP compatible – signalling rates up to 2.25Gbits
The VE803 HDMI USB Extender extends an HDMI signal up to 60 meters from the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 60 meters and 1080p signals up to 40 meters.
The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit.
The VE803 is ideal for transportation centres, medical facilities, shopping malls or anywhere touch panel control or a kiosk is required. For flexibility and convenience, the VE803 local unit can be powered via the USB cable when connected to an appropriate source device. The VE803 is HDCP compliant, providing an easy and ideal HDMI extender solution for any application.
Package Contents
1x VE803T HDMI USB Extender
1x VE803R HDMI USB Extender
1x Power Adapter
1x USB Cable (1.8 m)
1x Mounting Kit
1x User Instructions
|
Function |
VE803R |
VE803T |
|
Video Input |
||
|
Interfaces |
N/A |
1 x HDMI Type A Female (Black) |
|
Impedance |
N/A |
100 Ω |
|
Max. Distance |
N/A |
3 m |
|
Video Output |
||
|
Interfaces |
1 x HDMI Type A Female (Black) |
N/A |
|
Impedance |
100 Ω |
N/A |
|
Max. Distance |
3 m |
N/A |
|
Video |
||
|
Max. Data Rate |
6.75 Gbps (2.25 Gbps Per Lane) |
6.75 Gbps (2.25 Gbps Per Lane) |
|
Max. Pixel Clock |
225 MHz |
225 MHz |
|
Compliance |
HDMI (3D, Deep Color) |
HDMI (3D, Deep Color) |
|
Max. Resolutions / Distance |
Up to 1080p@40m; 1080i@60m |
Up to 1080p@40m; 1080i@60m |
|
Audio |
||
|
Input |
N/A |
1 x HDMI Type A Female (Black) |
|
Output |
1 x HDMI Type A Female (Black) |
N/A |
|
Control |
||
|
USB |
1 x USB Type A Female |
1 x USB Type B Female |
|
EDID Settings |
EDID Mode: Default |
EDID Mode: Default |
|
Connectors |
||
|
Power |
1 x DC Jack |
1 x DC Jack |
|
Power Consumption |
DC5V:0.75W:14BTU |
DC5V:1.04W:16BTU |
|
Environmental |
||
|
Operating Temperature |
0 - 50°C |
0 - 50°C |
|
Storage Temperature |
-20 - 60°C |
-20 - 60°C |
|
Humidity |
0 - 80% RH, Non-Condensing |
0 - 80% RH, Non-Condensing |
|
Physical Properties |
||
|
Housing |
Metal |
Metal |
|
Weight |
0.16 kg ( 0.35 lb ) |
0.16 kg ( 0.35 lb ) |
|
Dimensions (L x W x H) |
9.00 x 5.74 x 2.40 cm |
9.00 x 5.74 x 2.40 cm |
|
Carton Lot |
5 pcs |
5 pcs |
|
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
|
