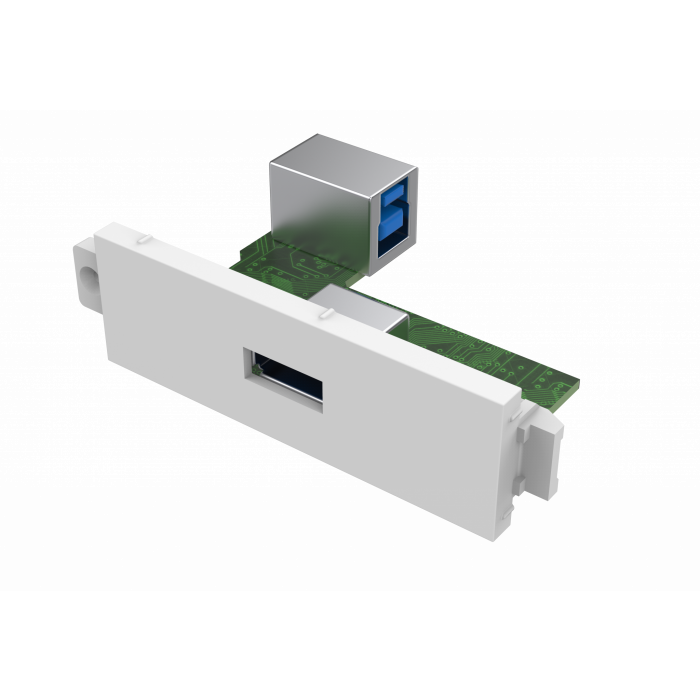

Vision Cable Termination System V3, USB A Module - 3446580
• "B" type socket on the rear as found on a printer chassis
• "A" type socket on front as found on a laptop chassis
• Occupies 1 module space
• USB 3.0
This module is part of Vision's Techconnect connectivity faceplate family.
Fixes to Surround
Techconnect modules fix into a surround, which in turn fixes to a backbox, mudring (for hollow walls), or a table faceplate.
Future-proof
If you break a module or need to change it in the future, just replace that part - not the entire faceplate.
Flexible
Get to site and the client changes what they want on their AV faceplate? No problem.
Strong
Techconnect parts are robust for the rigours of everyday use. They include strengthening ribs and reinforcing where required.
Proven
For over 15 years Techconnect has improved and developed into one of the most popular AV faceplates in the world.
COLOR
White
MATERIAL
ABS Plastic

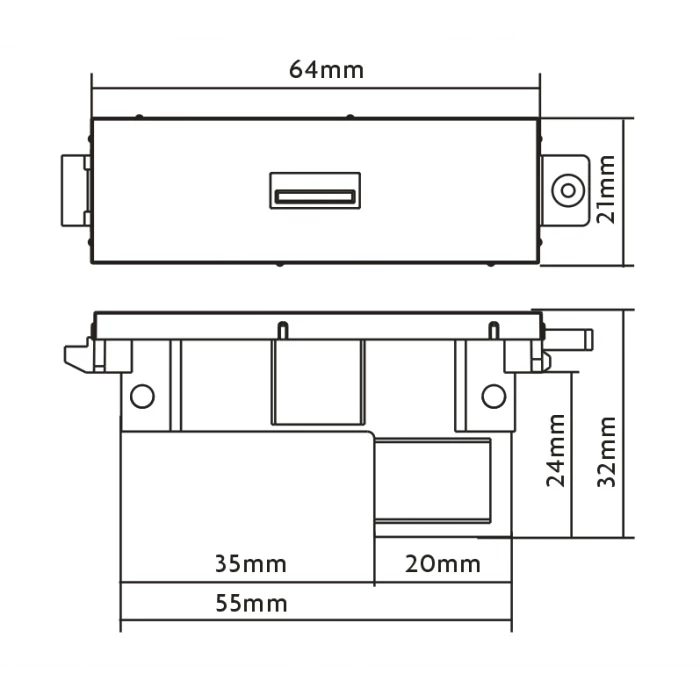

PRODUCT DIMENSIONS
64 x 21 x 32 mm / 2.5" x 0.83" x 1.26" (height x width x depth)
PRODUCT WEIGHT
0.02 kg (0.04 lb)
PACKAGED WEIGHT
0.02 kg (0.04 lb)
PACKAGED DIMENSIONS
90 x 150 mm/ 3.54" x 5.91"
ORDER PART CODE
TC3 USBA [EU SAP: 3446580 / US SAP: 12980830]
COUNTRY OF ORIGIN
China
ISO
ISO 9001:2015
