Vision Wall Speaker - 3635038 – Solution Technologies
Online Support Ask An Expert

Vision Wall Speaker - 3635038

Vision
VI3635038SPKAUDIO
R 2,944.00 Ex VAT

• 5.25″ Woofer 50w loudspeakers

• Wall brackets included with 60º range of tilt adjustment

• White, sold in pairs

Vision’s SP-1800 professional wall mounted loudspeakers are super-easy to install, look beautiful, and produce rich and powerful sound.

They are 240mm tall and use a 5.25 inch woofer – the most popular size for classroom, meeting room, and boardroom applications.

Three-Way

These loudspeakers use three drivers; a woofer, a squawker, and a tweeter. Asking a driver to produce a wide range of frequencies is always a compromise, so dividing the sonic range into three means each driver has a narrower range of frequencies to produce, resulting in less distortion and clearer sound.

Bass Reflex

A bass reflex port allows greater excursion of the woofer, allowing the woofer to produce lower frequencies, and the phase-delayed movement of air from behind the woofer to the front reinforces the bass even more.

Rugged Grille

A metal grille protects the drivers from physical interference.

Tough Finish

Constructed with tough ABS plastic, the finish withstands the rigors of the professional use.

Pro AV Applications

In small to medium presentation environments a wide dispersion is generally more important than microphone feedback management, so no horns are used.

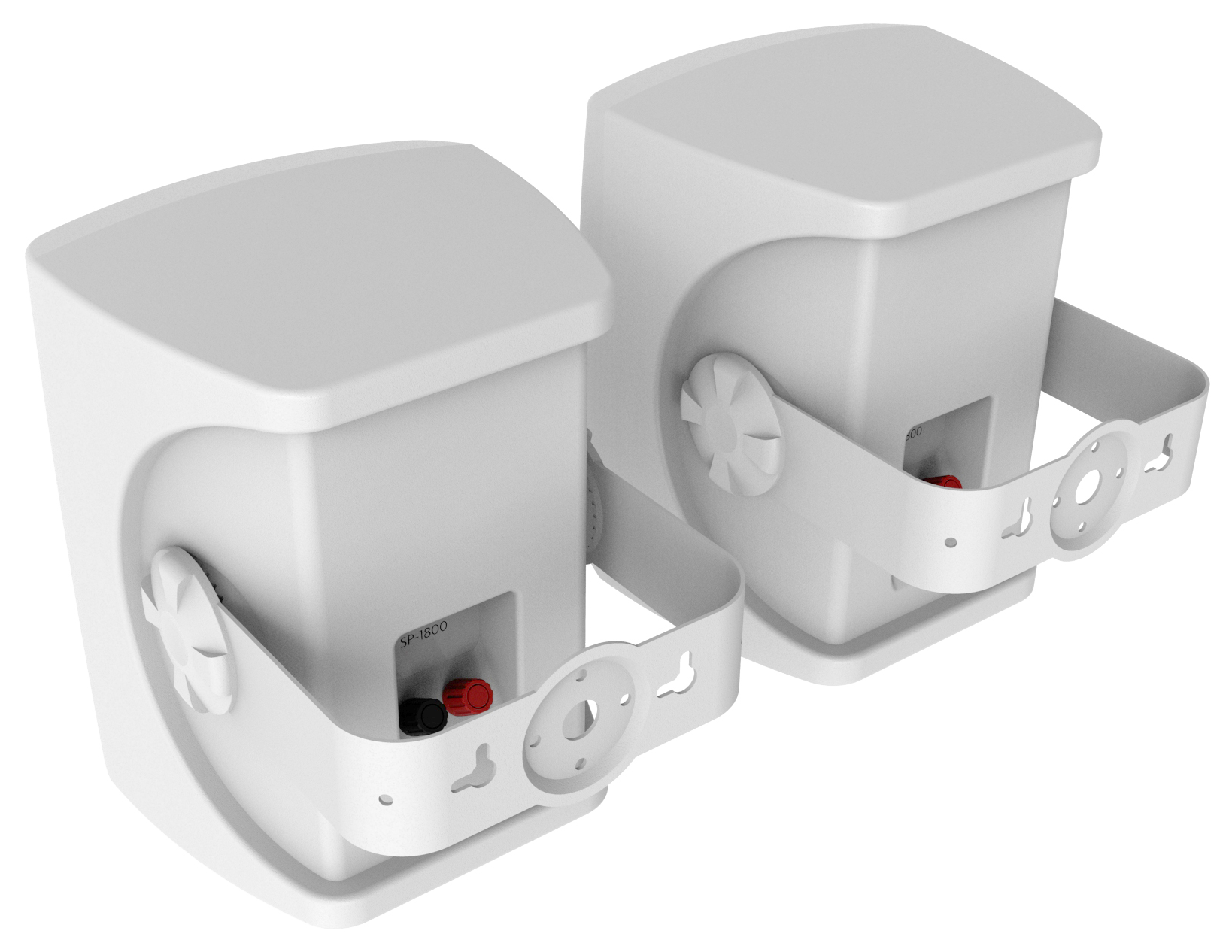

Horizontal C bracket

The adjustable brackets allow the installer to easily angle up 30º or down 30º. Or leave the brackets off and use as shelf speakers.

Note

These are passive loudspeakers – there is no amplifier built in – so they need to be used with an external amplifier.

PRODUCT DIMENSIONS

244 x 180 x 174 mm (tall x wide x deep for each speaker)

PACKAGED DIMENSIONS

465 x 205 x 270 mm

PRODUCT WEIGHT

4.2 kg (per pair)

PACKAGED WEIGHT

4.67 kg (per pair)

CONSTRUCTION MATERIAL

ABS

COLOUR

White

POWER HANDLING

50 watts (RMS)

WOOFER

5.25″

SQUAWKER

1″

TWEETER

0.5″

INPUT TERMINALS

Binding post

OUTPUT IMPEDANCE

8 ohms

SENSITIVITY

89dB (1w/1m)

FREQUENCY RESPONSE

80Hz-20kHz

ACCESSORIES INCLUDED

2 x Wall brackets

WARRANTY

Lifetime return-to-base

COMPLIANCE

RoHS, WEEE, CE/ EMC, FCC, RCM-POC, RCM-SDOC, REACH, UKCA

ORDER PART CODE

SP-1800 [EU SAP: 3635038 / US SAP: 12928302]

COUNTRY OF ORIGIN

China

3635038 Datasheet PDF
