Aten 4K DisplayPort to HDMI Active Adapter - VC986
• Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++)*
• Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to 4K UHD
• Supports AMD Eyefinity™ Technology (multi-screen setups)
• Audio supported

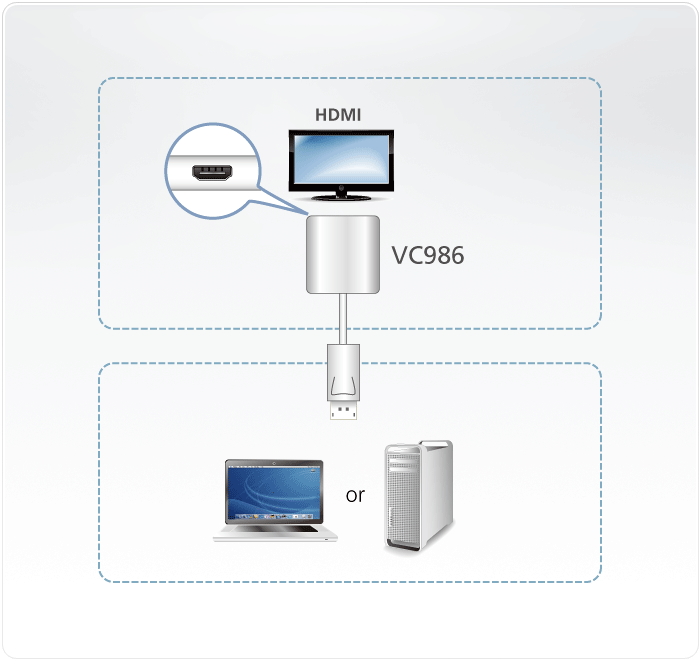

• The VC986 is an active DisplayPort to HDMI adapter that allow you to connect your Mini DisplayPort/DisplayPort output device to the HDMI input of a 4K TV or other display.
• The ATEN VC986 is an active adapter, featuring advanced chips which ensure stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++).* Moreover, support for resolutions up to 4K make this adapter ideal for users who require a high performance signal conversion solution.
• Converts DisplayPort signals to HDMI output
• Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to 4K UHD
• Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++)*
• Supports AMD Eyefinity™ Technology (multi-screen setups)
• Audio supported
• No software or driver installation required
|
Video Input |
|
|
Interfaces |
1 x DisplayPort Male (White) |
|
Video Output |
|
|
Interfaces |
1 x HDMI Type A Female (Black) |
|
Video |
|
|
Max. Pixel Clock |
297 MHz |
|
Max. Resolution |
3840x2160@30Hz, 1920 x 1200@60Hz. |
|
Compliance |
DP1.2a, HDMI (3D, Deep Color, 4K), HDCP 1.3 |
|
Audio |
|
|
Output |
1 x HDMI Type A Female (Black) |
|
Environmental |
|
|
Operating Temperature |
0 - 50 ºC |
|
Storage Temperature |
-20–60 ºC |
|
Humidity |
0 - 80% RH, Non-Condensing |
|
Physical Properties |
|
|
Housing |
Plastic |
|
Weight |
0.04 kg ( 0.09 lb ) |
|
Dimensions (L x W x H) |
18.00 x 4.50 x 1.50 cm |
|
Carton Lot |
40 pcs |
VC986 Datasheet PDF
