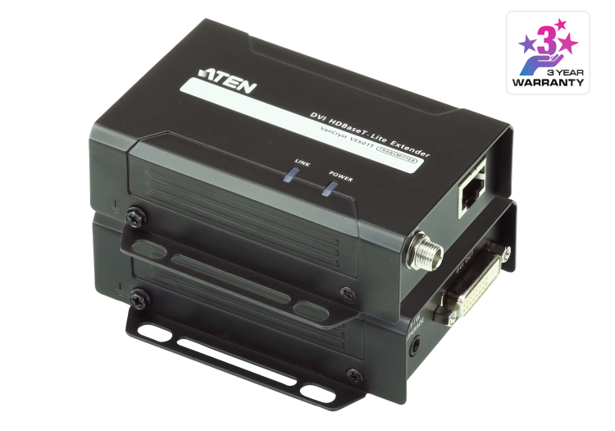

Aten Extender, DVI HDBaseT-Lite - VE601
• HDBaseT connectivity – extends a DVI connection up to 70 m
• HDBaseT Anti-Jamming – resists signal interference during video transmission
• Rack-mountable

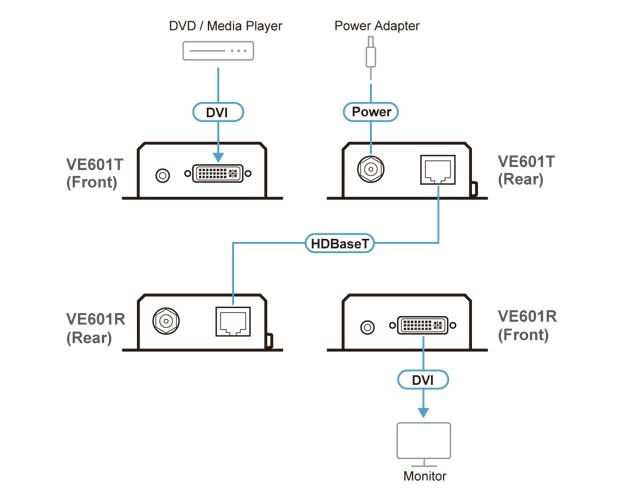

The VE601 DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.
• Package Contents
1x VE601T/R DVI HDBaseT-Lite Extender
2x Power Adapters
1x User Instructions
HDBaseT connectivity – extends a DVI connection up to 70 m
Superior video quality – 1920 x 1200 @ 35 m (Cat 5e / 6) / 40 m (Cat 6a) ; 1080p @ 60 m (Cat 5e / 6) / 70 m (Cat 6a / ATEN 2L-2910)
DVI (3D, Deep Color); HDCP 1.4 compliant
HDBaseT Anti-Jamming – resists signal interference during video transmission
Plug-and-play
Rack-mountable
|
Function |
VE601R |
VE601T |
|
Video Input |
||
|
Interfaces |
N/A |
1 x DVI-D Female (White) |
|
Impedance |
N/A |
100 Ω |
|
Max. Distance |
N/A |
Up to 1.8m |
|
Video Output |
||
|
Impedance |
100 Ω |
N/A |
|
Interfaces |
1 x DVI-D Female (White) |
N/A |
|
Video |
||
|
Max. Pixel Clock |
340 MHz |
340 MHz |
|
Max. Data Rate |
10.2Gbps (3.4Gbps per lane) |
10.2Gbps (3.4Gbps per lane) |
|
Compliance |
DVI (3D, Deep Colour) |
DVI (3D, Deep Colour) |
|
Max. Resolutions / Distance |
Up to 1920 x 1200@35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910 Cat6); |
Up to 1920 x 1200@35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910 Cat6); |
|
Connectors |
||
|
Power |
1 x DC Jack with locking |
1 x DC Jack with locking |
|
Unit To Unit |
1 x RJ-45 Female |
1 x RJ-45 Female |
|
Power Consumption |
DC5V:4.36W:20BTU |
DC5V:1.84W:9BTU |
|
Environmental |
||
|
Operating Temperature |
0-50°C |
0-50°C |
|
Storage Temperature |
-20 - 60°C |
-20 - 60°C |
|
Humidity |
0% - 80% RH, Non-condensing |
0% - 80% RH, Non-condensing |
|
Physical Properties |
||
|
Housing |
Metal |
Metal |
|
Weight |
0.25 kg ( 0.55 lb ) |
0.25 kg ( 0.55 lb ) |
|
Dimensions (L x W x H) with bracket |
10.20 x 8.70 x 3.00 cm |
10.20 x 8.70 x 3.00 cm |
|
Dimensions (L x W x H) without bracket |
9.42 x 6.60 x 2.90 cm |
9.42 x 6.60 x 2.90 cm |
VE601 Datasheet PDF
