Epson Home Cinema Projector, 2500 Ansi Lumens, 4K PRO-UHD resolution, 16:9 Aspect Ratio - EHLS11000W
• Impressive sharp display 4K resolution (8.3mil pixels) and HDR10+ support
• Smooth, fast-moving action 4K Frame Interpolation and 4K Super Resolution
• Long-lasting solution Enjoy up to 10 years of entertainment¹ thanks to laser light-source
• Fully motorised optics Powered zoom, focus and lens shift
• Wide lens shift Vertical ±96.3% and horizontal ±47.1%
• Enjoy the ultimate picture quality
Heighten your home cinematic experience with this 4K resolution projector. Epson's 3LCD technology allows you to avoid the 'rainbow effect' and enjoy vivid colours thanks to an equally high White and Colour Light Output of 2,500 lumens. HDR10+ support reveals extra detail and depth, giving you natural yet richer colours. What's more, see incredibly defined detail in the shadows with the high contrast ratio of 2,5000,000:1 delivering deep blacks. With 4K Frame interpolation, 4K Super Resolution and scene adaptive gamma correction/auto contrast enhancement, the ultimate home-cinema experience is at your fingertips.
• Long-lasting solution
The long-lasting laser light source will provide lower energy consumption, and you'll be able to enjoy home entertainment for up to 10 years¹.
• Easy yet durable set-up
We don't think a home projector should be any more complicated to use than a TV. Installation is simple and precise thanks to motorised optics including a powered 2.1x optical zoom, powered focus and powered lens shift of ±96.3% vertical and ±47.1% horizontal.
• Enhanced controls
It's easy to view films in the right aspect ratio by storing your ten favourite formats. The projector is also compatible with Calman software calibration.
• Technology
Projection System
3LCD Technology, RGB liquid crystal shutter
LCD Panel
0,74 inch with C2 Fine
• Image
Colour Light Output
2.500 Lumen In accordance with IDMS15.4
White Light Output
2.500 Lumen In accordance with ISO 21118:2020
Resolution
4K 3840 x 2160, 8.3m pixels, 16:9
Aspect Ratio
16:9
Contrast Ratio
2.500.000 : 1
Light source
Laser
Laser Light source
72 mW 20.000 hours Durability High, 20.000 hours Durability Medium, 20.000 hours Durability Eco
Keystone Correction
Manual vertical: ± 30 °, Manual horizontal ± 30 °
Colour Video Processing
10 Bits
2D/3D Frequency Image
384 Hz / 480 Hz
2D Vertical Refresh Rate
384 Hz - 480 Hz
Colour Reproduction
Up to 1.07 billion colours
HDR support
HLG, HDR10+
• Optical
Throw Ratio
1,35 - 2,84:1
Zoom
Motorized, Factor: 1 - 2,1
Lens Shift
Motorized - Vertical ± 96,3 %, horizontal ± 47,1 %
Lens position memory
10 positions
Screen Size
50 inches - 300 inches
Projection Distance Wide/Tele
3 m - 6,4 m ( 100 inch screen
Projection Lens F Number
2 - 3
Projection Lens Focal Length
22,5 mm - 46,7 mm
Projection Lens Focus
Motorized
• Connectivity
Interfaces

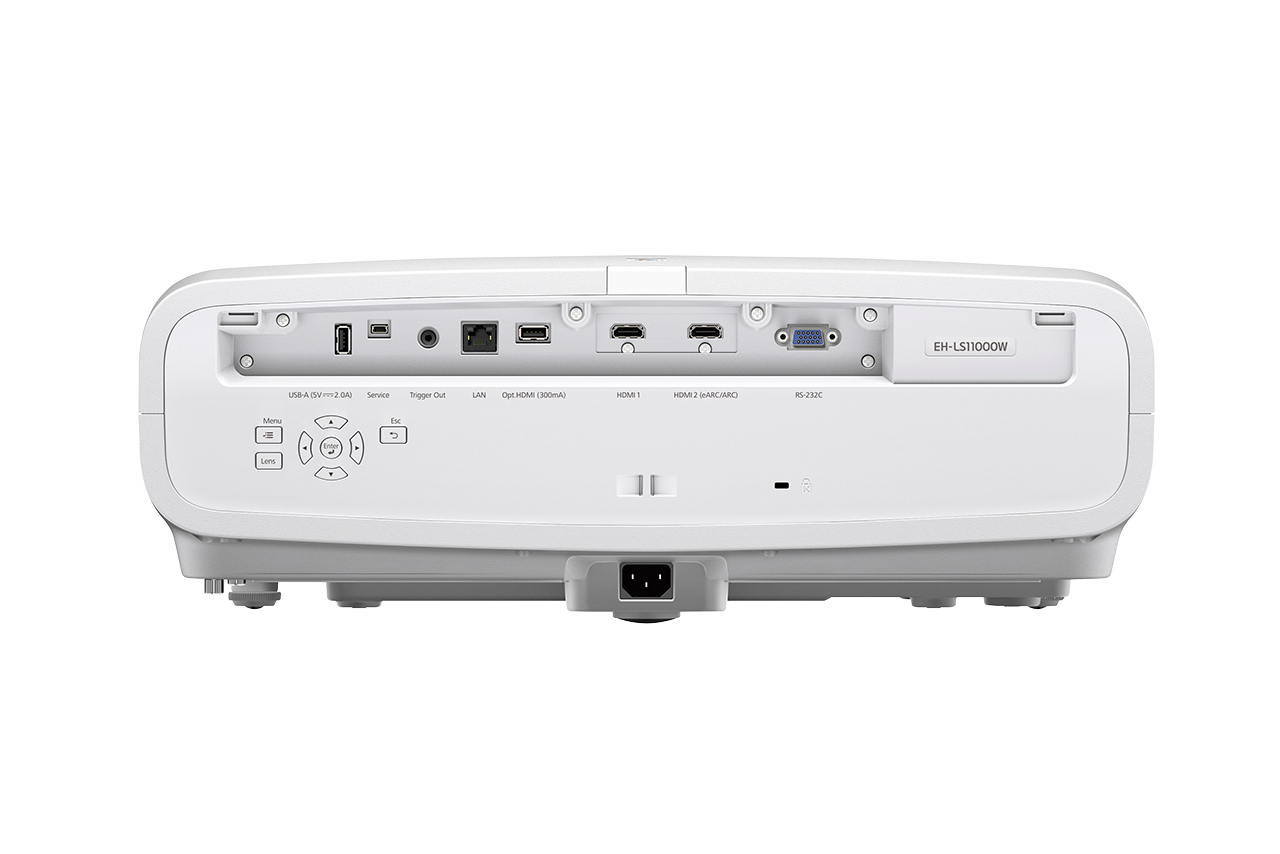

USB 1.0-A (2x), USB 2.0 Mini-B, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Trigger out, HDMI ARC, HDMI (HDCP 2.3) (2x)
• Advanced Features
Security
Kensington lock
3D
No
2D Colour Modes
Dynamic, Natural, Cinema, Bright Cinema, Vivid
Other features
4K enhancement, A/V mute, Digital zoom, Frame interpolation, Horizontal and vertical keystone correction, Instant on/off, Lens position memory, Long light source life, Super resolution
Video Colour Modes
Cinema, Dynamic, Natural, Bright Cinema, Vivid
Projector control
via: Crestron Integrated Partner, AMX Device Discovery, Control4 Simple Device Discovery Protocol
• General
Power consumption
302 Watt (Normal Peak-mode), 198 Watt (Eco Peak-Mode), 0,4 Watt (Energy saving standby)
Heat Dissipation
1.026,8 BTU/hour (max)
Supply Voltage
AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions
520 x 447 x 193 mm (Width x Depth x Height)
Product weight
12,7 kg
Noise Level
Normal: 30 dB (A) - Economy: 22 dB (A)
Supported Temperature
Operation 5° C - 35° C, Storage -10° C - 60° C
Supported Humidity
Operation 20% - 80%, Storage 10% - 90%
If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.
If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
• Room Type / Application
4K Gaming, Home Cinema, Sports
Positioning
Ceiling Mounted, Desktop
Colour
White
• Other
Warranty
60 months Carry in or 12.000 h
EH-LS11000W Datasheet PDF
