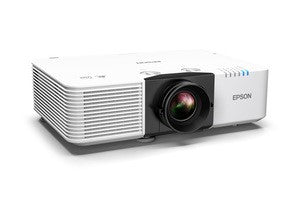

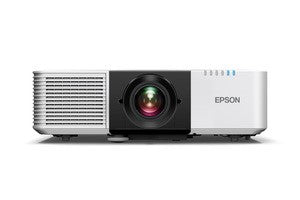

Epson Business Projector, 6500 Ansi Lumens, 3LCD WUXGA resolution, 16:10 Aspect Ratio - EBL690E
• 6,500 lumens colour/white brightness
• WUXGA with 4K Enhancement for clear, detailed images
• Display up to 500" diagonal in 16:10, plus ultra-wide 16:6 and 21:9
• Lightweight, compact design allows for easy installation
• Up to 30,000-hour laser light source and air filter
Experience an incredibly bright and compact projector with pro-level features.
The PowerLite L690E adds pro features to the compact and versatile PowerLite L-Series projector family. Featuring 6,500-lumens of colour and white brightness, it is ideal for classrooms and lecture halls, conference rooms, hybrid workspaces and more. The PowerLite L690E displays double HD resolution on-screen with 4K Enhancement Technology for sharp, detailed images—even up close. This powerful projector produces exceptionally vibrant, high-resolution images up to 500'' in 16:10, plus is capable of projecting in a variety of other aspect ratios, including ultra-wide 16:6 and 21:9.
Designed with convenience in mind, the PowerLite L690E features an up to 30,000-hour virtually maintenance-free laser light source and air filter in Extended Mode. And for simple, seamless installation, this versatile solution offers a variety of powerful features, such as optical zoom, wide lens shift, geometric correction tools and more. With built-in wireless communication, you can monitor and control your fleet remotely from a web browser using the Epson Projector Management Connected app, as well as enable advanced screen casting tools like Epson iProjection™ and Miracast®. Plus, simplify complex multi-projector applications with the optional attachable PixAlign™ camera.
Epson’s PowerLite L-Series offers a range of solutions to meet virtually any application, including various short throw models and an extensive selection of brightness and resolution options.
• Built-in NFC5 — reduces installation time of multiple projectors; read and write setting information using the Epson Projector Config Tool app
• Optional attachable PixAlign camera — adds powerful multi-projector tools including screen matching, auto colour calibration, blending assist for super wide displays and simple stacking without an external PC
• Over-the-air updates — allows user to optionally be alerted when a Firmware update is available
• Enhanced connectivity — HDBaseT® and HDMI® two in and one out for daisy chaining and signal monitoring
• Eco Features
• RoHS compliant
• End-of-life options available
• Design and Manufacturing centres utilize 100% renewable electricity
• Dynamic Contrast (ECO) Mode reduces power consumption by 36%
Projection System RGB liquid crystal shutter projection system
Projection Method Front/rear/ceiling mount
LCD Size 0.67" (C2Fine)
Driving Method Poly-Silicon TFT Active Matrix Pixel Number 2,304,000 dots (1920 x 1200) x 3 Native Resolution WUXGA with 4K Enhancement1 (1920 x 1200 x 2)
Resolution On-Screen WUXGA with 4K Enhancement1/
4.6 million pixels
Resize 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
Aspect Ratio 16:10
Pixel Arrangement Cross stripe
Color Brightness2 Color light output: 6,500 lumens White Brightness2 White light output: 6,500 lumens Contrast Ratio Over 5,000,000:1
Brightness Uniformity (Typical) 88% Color Reproduction Up to 1.07 billion colors Size (Projected Distance) 50" – 500"
Projected Distance 80" screen 2.33 m – 3.78 m Lens Shift (Manual) Vertical: ±50%; Horizontal: ±20% Keystone Correction Vertical: ±30 degrees; Horizontal: ±30 degrees
Light Source Laser Diode
Laser Light Source Life3 Normal: 20,000 hours; Quiet: 20,000 hours; Extended: 30,000 hours
Type Optical Zoom (manual)/Focus (manual)
F-Number 1.5 – 1.7
Focal Length 20.0 mm – 31.8 mm
Zoom Ratio 1.0 – 1.6x (optical)
Throw Rate Range 1.35 – 2.20 (optical)
Lens Cover Lens cap (without string)
Frequency Type (Modulations) 802.11b/g/n/ac/ax (2.4 GHz)
Supported Security Type Quick Mode: Open, WPA2/ WPA3-PSK, WPA2/WPA3-EAP; Advanced Mode: WPA/ WPA2-PSK, WPA/WPA2-EAP
Operating Temperature 32 ˚F to 113 ˚F (0 ˚C to 45 ˚C) Power Supply Voltage 100 V – 240 V ± 10%, 50/60 Hz AC Auto Power On Signal Detection on HDMI/Plug-In Detection Sleep Mode Yes (with timer)
HDMI CEC Control Yes Power Consumption 415 W (Normal Mode)
305 W (Quiet and extended)
2.4 W (Standby comm on)
0.3 W (Standby comm off)
Fan Noise 32 dB (Normal Mode); max. 25 dB (ECO Mode) Security cable hole, Kensington® lock provision A/V Mute Yes
Miracast®4 Yes
Epson iProjection™4 Yes (V4)
Interfaces
HDMI (HDCP 2.3) x 2
HDMI Out x 1 HDBaseT x 1
Variable Audio Out: Mini Stereo x 1 USB Connector Type-A x 1
USB Connector Type-B x 1 Serial: RS-232c x 1
Wired LAN RJ45 x 1 Wireless LAN: Built-in
Split Screen9 Yes (up to 2 screens)
Camera Yes
Speaker(s) 10 W (mono) Content Playback Yes Quick Corner Yes Corner Wall Yes
Curved Surface Yes Edge Blending Yes Screen Sharing Yes
Pixel Clock 25.1 MHz – 594 MHz
Horizontal 26 kHz – 135 kHz
Vertical 23.98/24/25/29.97/30/50/59.94/60 Hz
Excluding Feet 17.32" x 11.97" x 4.80"
Including Feet 17.32" x 13.39" x 5.43"
Weight 18.1 lb
Features Power, source search selection, A/V Mute, number input, menu, esc, select, Freeze, ID, Customize, E-Zoom, mute, volume, playback control and pointer functions
Operating Angle Rear: Right/Left: -55 to +55 degrees; Upper/Lower: +75 to +15 degrees; Front: Right/Left: -30 to +30
degrees; Upper/Lower: 0 to +60 degrees
Operating Distance 26 ft (8 m)
Network Control PJLink, Creston Integrated partner, Crestron Connected V2 with XiO Cloud, Extron IP link, Extron XTP, AMX, Control4
RoHS compliant
End-of-life options available10
Epson America, Inc. is a SmartWay® Transport Partner11
Design and Manufacturing centers utilize 100% renewable electricity Dynamic Contrast (ECO) Mode reduces power consumption by 36%
Warranty Three-year limited in the U.S. and Canada Service Whole unit exchange, usually Next-Business-Day Toll-free telephone support, Monday through Friday Epson Connection™
Pre-Sales Support (U.S. and Canada): 800-463-7766 Website: www.epson.com
- Year Next-Business-Day Whole Unit Exchange13 EPPEXPE1
- Year Next-Business-Day Whole Unit Exchange13 EPPEXPE2 (available for up to a total of 5 years of continuous coverage)
PowerLite L690E laser projector, power cable, projector remote control with batteries, Quick Reference card, cable cover
PowerLite L690E V11HB25020
Replacement Air Filter (ELPAF65) V13H134AF0 Custom Micro-Adjustable Projector Mount (ELPMBPRH) V12H809001 Universal Projector Mount (ELPMBPJG) V12H808001 PowerLite Pilot™ 3 (ELPCB03) V12H927020 PixiePlus ELPSP10
PixAlign Camera (ELPEC01) V12HA46010
External Speaker (ELPSP02) V12H467020
DC-07 Document Camera V12H75902
DC-13 Document Camera V12H757020
DC-21 Document Camera V12H758020
