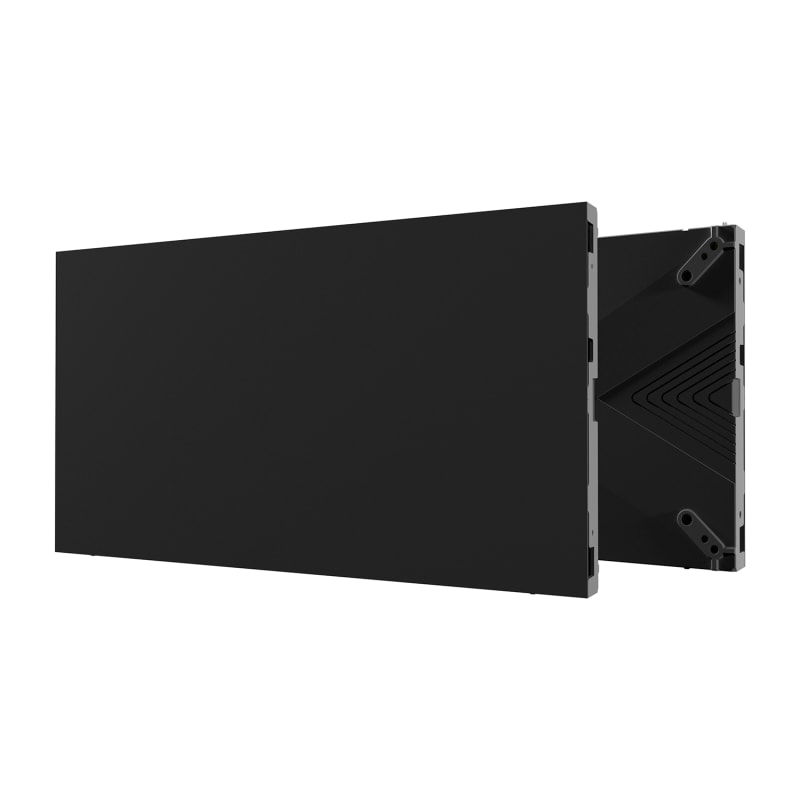

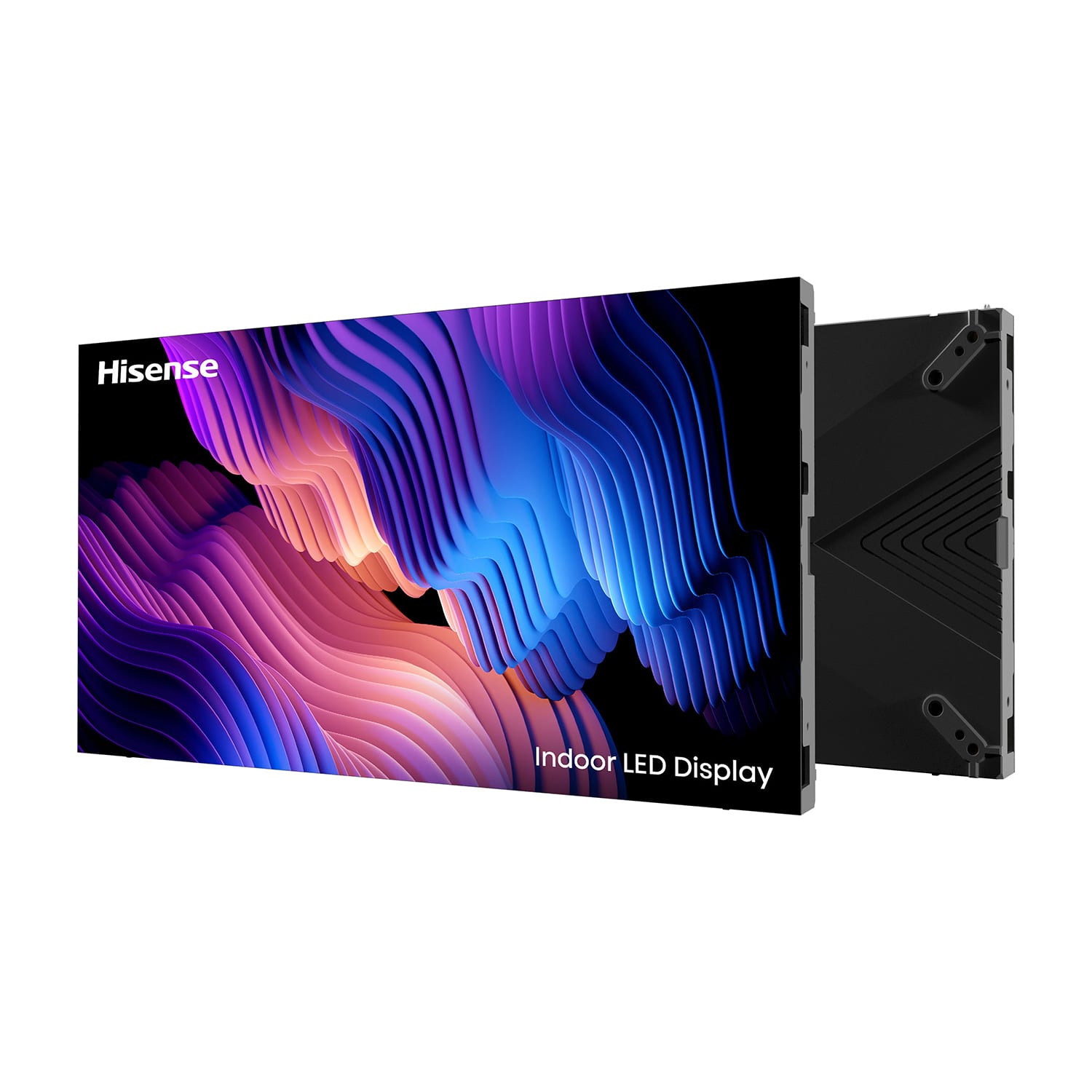

Hisense Indoor LED, 0.9375mm Pixel Pitch - XIH009
• The Hisense XIH series is "Price on Request"
• XIH series LED solutions deliver unrivalled versatility due to the variety of cabinet configurations available.
• Integrators specifying the XIH range have access to the broadest range of pixel pitch and aspect ratios options.
• Perfect for any internal space, these innovative Hisense LED modules include cable-less internal construction and full frontal access for ease of maintenance.
• Black Coating Technology
COB products are sealed with black epoxy resin on the surface, which guarantees a uniform colour.
• Better Protection
Compared to SMD packaging, COB is one-piece potting sealing to protect important electronic devices. The display screen has the advantages of moisture-proof and anti-static, you can directly wipe the screen with water.
• Automatic PQ Adjustment
Hisense XIH series, the spare lamp board can be directly replaced, intelligent reading lamp board data, automatically complete the colour correction.
• Extremely Reliable
Flip-chip COB LED with no solder lines and electrodes directly welded to the PCB. No need to worry about the problem of easy breakage of the solder wire, it’s more reliable.
• Quick Installation and Easy Maintenance
Full front installation, maintenance, save the installation space. Also supporting multiple installations, wall-mounting, hanging, which can meet the demands of various environments
Model: XIH009
Pixel Pitch: P0.9375
LED Package Flip-chip COB (1, Red, 1 Green, 1 Blue)
Thickness (Excluding protrusions part) 39.3mm / 1.55 inch
Module Resolution 160 x 180
Module Size (W/H) 150 x 168.75mm / 5.91 x 6.64 inch
Cabinet Dimension (W/H) 600 x 337.5mm / 23.62 x 13.29 inch
Cabinet Resolution 640 x 360
Cabinet Weight (panel) <5.5kg / <12.12lbs
Cabinet Materials Die-cast Aluminium
Brightness (typ.) (nits) 600 (150-1,000 Adjustable)
Contrast Ratio >10,000:1 (According to the current Hisense test environment)
Colour Gamut >90% BT.2020
Brightness Uniformity 97%
Colour Uniformity +0.003 Cx, Cy
Maintenance Front Access
IP Rating IP20
Max Power Consumption (W/sqm) <450
Avg Power Consumption (W/sqm) <245
Viewing Angle (H/V°) 155 / 155
Refresh Rate (Hz) 3,840
Operating Environment From -10~45°C
Relative Humidity 10~90%RH
Lifetime (typ.) 100,000 Hrs
