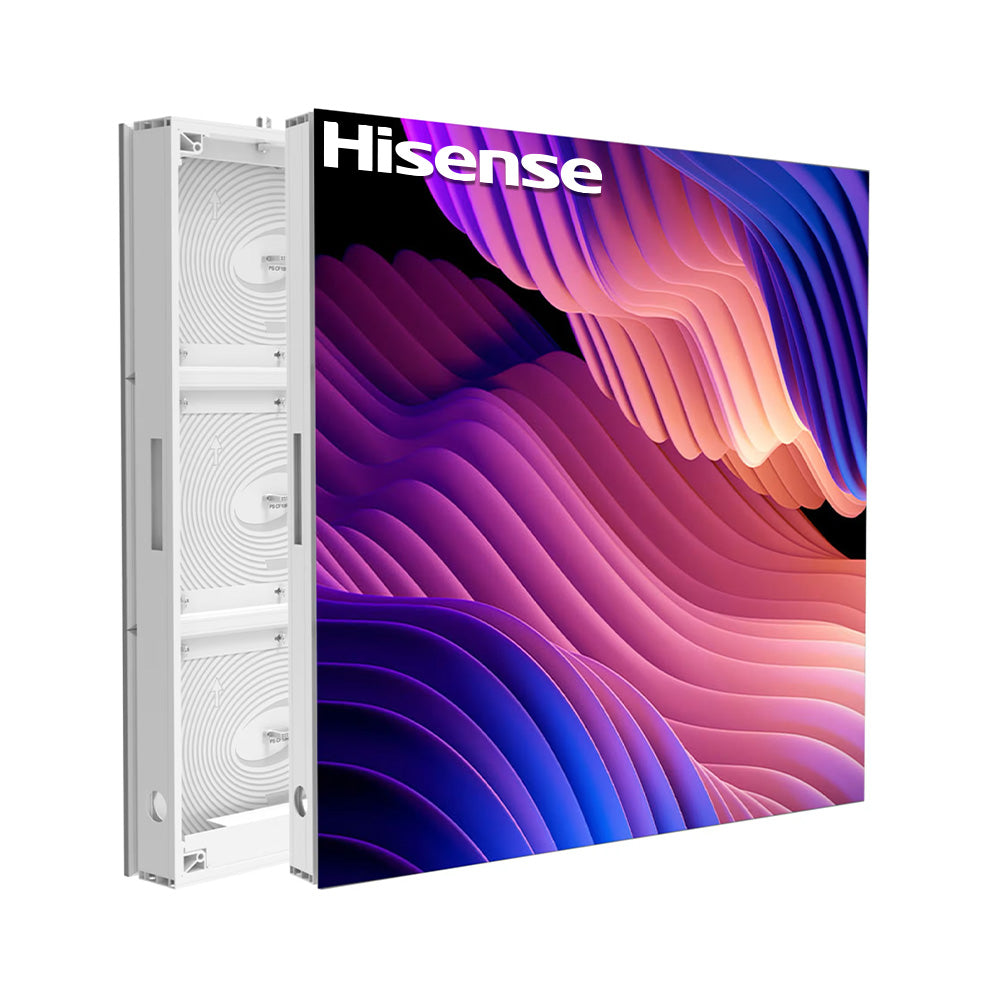

Hisense Outdoor LED, 16mm Pixel Pitch - XOM160A
• The Hisense XOM series is "Price on Request"
• XOM series outdoor LED solutions are perfect for any billboard or large scale LED wall project.
• These ultra-reliable, high brightness, low power consumption modules also feature an IP65 rating and auto brightness adjustment for the ultimate impact in any climate or weather conditions.
• Hisense LED modules include cable-less internal construction and rear access for ease of maintenance.
• Bright and Vivid Images
10,000 nits high brightness, bright and vivid display, can be seen from a distance
• EMC Anti-Interference
Complies with international electronic EMC standards. Anti-electromagnetic interference, more stable operation
• Neat and Clean Screen
Clean cable solution, make the screen clear and beautiful.
• 29kg Lightweight Design
It takes only 2 minutes to splice two cabinets together, saving labour costs dramatically.
• 45 Bevelled Edge Design
45° bevelled edge design, easy to complete multiple curved surface splicing, up to-90°~90° curved surface installation.
• Front and Rear Access
Supports front maintenance. No need to reserve space for maintenance.
Pixel Pitch: 16 mm
Pixel Configuration: DIP gold wire / DIP346
Module Resolution (W x H): 30 x 20
Module Dimension (W x H): 480 x 320 mm / 18.9 x 12.6 inch
Cabinet Resolution (W x H): 60 x 60
Cabinet Dimension (W x H x D): 960 x 960 x 106 mm / 37.8 x 37.8 x 4.17inch
No. of Modules per Cabinet (W x H): 2 x 3
Cabinet Weight: 29 kg / 63.93 lbs
Cabinet Materials: Profile Aluminium
Brightness (Typ.): 10,000 nits (8,000~10,000 nits Adjustable)
Contrast Ratio: 3,000 : 1 (According to the current Hisense test environment)
Visual Viewing Angle (H x V): 120° x 60°
Bit Depth: 13 bit (13~16 bit Customisable)
Colour Temperature: 6500K ± 500K
Max Power Consumption per Cabinet: 325 W
Avg Power Consumption per Cabinet: 97 W
Max Power Consumption per Unit Area: 350 W/m2
Avg Power Consumption per Unit Area: 105 W/m2
Power Supply: 100~240 V AC
Refresh Rate: 1,920 Hz (3,840 Hz Customisable)
Operating Temp / Humidity: -20~50°C / 10~90% RH
Storage Temp / Humidity: -30~60°C / 10~90% RH
IP Rating: Front IP65 & Rear IP54
Lifetime: 100,000 Hrs
Maintenance: Front & Rear Access
