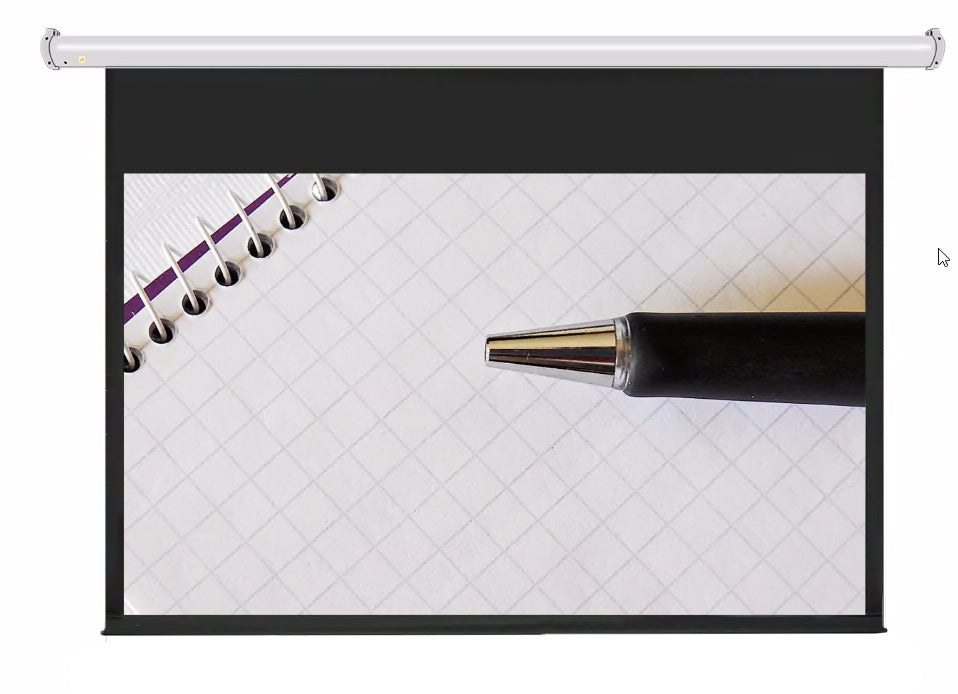

JK Electric Screen, 196", 16:10 Aspect Ratio, Matt White Fabric - E10196
• Viewing area 422.2cm x 263.8cm
• 196 " Diagonal
• Full Black Border
• Aspect ratio 16:10
• Matt White Fabric
• Standard Electric Screen
White powder coated steel cabinet, high quality matt white fabric.
Advanced tubular motor for quiet, fast operation.
End cap remote control receiver, ( sizes larger than 150" have external remote receiver )
IR with extended IR probe and RF remote
12 volt trigger @ RS232.
Mounting brackets & fasteners & remote cradle.
Aspect ratios available 4:3, 16:9 and 16:10
12 MONTHS RTB WARRANTY
Manu Model # |
Format |
Diag. Size (inch) |
Viewing area W x H (mm) |
Case Length (mm) |
Total Height (mm) |
Black Drop (mm) |
Packing Size (mm) LxWxH |
Gross Weight (kg) |
JK-E4 100 |
|
100” |
2030 x 1520 |
2300 |
1760 |
60 |
2565 x 175 x 130 |
11.5 |
JK-E4 120 |
4:3 |
120” |
2440 x 1830 |
2710 |
2070 |
60 |
2965 x 175 x 130 |
13 |
JK-E4 150 |
|
150” |
3050 x 2285 |
3320 |
2585 |
100 |
3550 x 190 x 145 |
25 |
JK-E4 173 |
|
173” |
3515 x 2636 |
3805 |
2936 |
100 |
4030 x 195 x 190 |
41 |
JK-E9 92 |
|
92” |
2030 x 1140 |
2300 |
1760 |
450 |
2565 x 175 x 130 |
11 |
JK-E9 106 |
|
106” |
2345 x 1320 |
2610 |
1890 |
400 |
2880 x 175 x 130 |
12.5 |
JK-E9 119 |
16:9 |
119” |
2635 x 1480 |
2895 |
1960 |
300 |
3160 x 175 x 130 |
14 |
JK-E9 133 |
|
133” |
2950 x 1655 |
3220 |
2010 |
150 |
3450 x 190 x 145 |
23.5 |
JK-E9 150 |
|
150” |
3320 x 1780 |
3590 |
2150 |
100 |
3830 x 190 x 145 |
26.5 |
JK-E9 173 |
|
173” |
3830 x 2154 |
4120 |
2454 |
100 |
4340 x 195 x 190 |
44 |
JK-E9 196 |
|
196” |
4339 x 2440 |
4629 |
2740 |
100 |
4850 x 195 x 190 |
50.5 |
JK-E10 92 |
|
92” |
1980 x 1240 |
2300 |
1760 |
450 |
2565 x 175 x 130 |
11 |
JK-E10 106 |
|
106” |
2280 x 1425 |
2610 |
1890 |
400 |
2880 x 175 x 130 |
12.5 |
JK-E10 119 |
16:10 |
119” |
2560 x 1600 |
2895 |
1960 |
300 |
3160 x 175 x 130 |
14 |
JK-E10 133 |
|
133” |
2860 x 1790 |
3220 |
2010 |
150 |
3450 x 190 x 145 |
23.5 |
JK-E10 150 |
|
150” |
3230 x 2020 |
3525 with internal remote |
2290 |
100 |
3450 x 185 x 135 |
29 |
JK-E10 173 |
16:10 |
173” |
3726 x 2329 |
4016 |
2629 |
100 |
4310 x 195 x 190 |
44 |
JK-E10 196 |
|
196” |
4222 x 2638 |
4510 with internal remote |
3068 |
100 |
4532 x 195 x 190 |
50.5 |
E10196 Datasheet PDF
