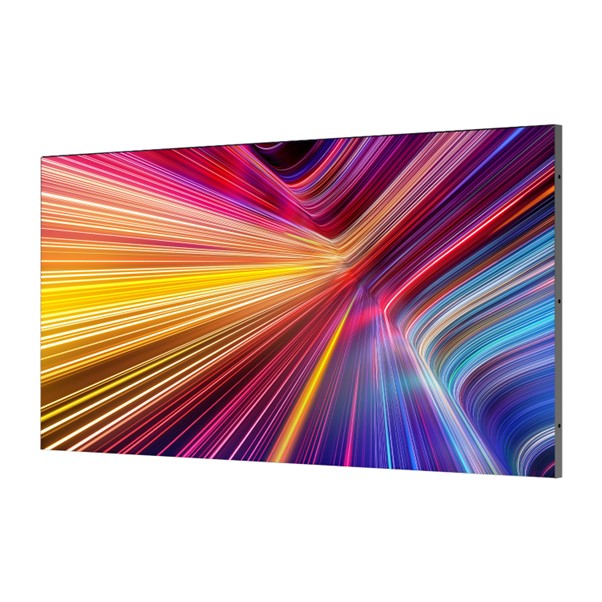

Hisense Digital Signage,54", 250 nits, ELED resolution, with 7day x 24hrs operation, Android 14 OPS - 54DS012FE
• Hisense’s 54DS012FE with its own ASIC chipset built-in delivers 25,000:1 contrast ratio with enhanced brightness and wide viewing angles, redefining visual standards for professional displays.
• Engineered for unwavering reliability, it excels in mission-critical environments through seamless splicing and extraordinary imaging.
• This next-generation solution outperforms traditional video walls, setting new benchmarks for command centers, XR virtual production, broadcast facilities, conference venues, and exhibition spaces.
• Smart and Vibrant 54-inch LED
The smart, vibrant 54-inch LED display, featuring 16 pieces 150 x 337.5 mm large-size modules, significantly boosts installation efficiency. Its carton-packaged units ensure safe handling while optimizing storage/logistics, delivering brilliant, seamless displays while maintaining the same logistical simplicity as LCD video walls and digital signage displays in warehousing and transport.
• ASIC-driven Precision Unleashed
The dedicated ASIC chipset replaces FPGA-based architecture and upgrades signal transmission to true 4K (60Hz) , eliminating convoluted sending/receiver cards. Proprietary enhanced LVDS protocol delivers 16 times bandwidth over conventional solutions, HDMI 2.0 transmission is enabled for the visually lossless transmission.
• Quick Installation
The display enables seamless viewing, it enables a controller-free installations up to 216 inches, which is a standard 4K display. This capability allows for 3 times faster installation process compared to traditional LED displays, significantly streamlining the setup of cabinets, signal cables, and power cables.
• HDMI Daisy Chain
Experience the simplicity of controller-free 1:1 pixel mapping for NxN (N < 4) LED walls. The native HDMI daisy-chaining feature enables effortless, single-cable signal transmission between displays, eliminating complex controllers and ensuring perfectly synchronized, seamless tiling. This direct cascading technology streamlines installation while maintaining lossless image quality across the entire LED wall.
• Standard VESA and Rapid Integration
Seamless integration with the industry-standard VESA mounting is made possible. Reuse your existing brackets for quick installation. This plug-and-play compatibility minimizes downtime while ensuring consistent, vibration-resistant alignment post-installation, eliminating the need for additional hardware costs.
• Energy Efficient
Efficient power supply and 3-in-1 ASIC architecture ensure low energy consumption, while optimized common cathode drivers and advanced energy-saving algorithms further decreased nearly 20% power consumption compared with last generation COB. The maximum screen temperature is maintained below 40°C*, significantly enhancing user comfort and product durability. *According to the current Hisense Test Environment
• EMC Class B
Certified to EMC Class B standards, this display offers reduced electromagnetic interference, enhanced stability, superior compatibility with other devices, and safer operation for a wide range of commercial and residential applications.
• Built-in VisionInfo
Hisense VisionInfo is an integrated system offering comprehensive, cloud-based device control and management capabilities. This innovative system enables seamless end-to-end monitoring and operation of connected devices.
Physical
Pixel Pitch: 1.25mm
Pixel Configuration: Flip-chip COB (1 red, 1 green, 1 blue)
Screen Resolution (W x H): 960 x 540
Module Dimensions (W x H): 150 x 337.5mm / 5.91 x 13.29 inch
No. of Modules per Cabinet (W x H): 8 x 2
Screen Dimensions (W x H x D):
- 1200 x 675 x 31.3mm / 47.24 x 26.57 x 1.23 inch
- 1204 x 679 x 32.8mm / 47.40 x 26.73 x 1.29 inch (with frame)
Cabinet Materials: Die-cast Aluminium
VESA Mount: 600 x 400 (Installed by: M8 screws / Hole depth 10mm)
Optical
Brightness (typ.): 600 nits
Brightness (max./peak.): 1000 nits / 1200 nits
Contrast Ratio: 25,000:1@10lux 1000 nits / 15,000:1@10lux 600 nits
Visual Viewing Angle (H x V): 165° x 150°
Bit Depth: 14 bit
Colour Temperature: 6500 + 500K
Colour Gamut: >100% DCI-P3
Brightness Uniformity: 97%
Colour Uniformity: +0.003 Cx, Cy
Aspect Ratio: 16:9
Electrical
Max Power Consumption:
- 346 (W/m2) / 280 (W/Cabinet) @1,000nits
- 247 (W/m2) / 200 (W/Cabinet) @600nits
Avg Power Consumption:
- 156 (W/m2) / 126 (W/Cabinet) @1,000nits
- 114 (W/m2) / 92 (W/Cabinet) @600nits
Max Heat Generation:
- 1,181 (BTU/m2) / 957 (BTU/Cabinet) @1,000nits
- 843 (BTU/m2) / 683 (BTU/Cabinet) @600nits
Avg Heat Generation:
- 532 (BTU/m2) / 431 (BTU/Cabinet) @1,000nits
- 389 (BTU/m2) / 315 (BTU/Cabinet) @600nits
Operational
Operating Temp / Humidity: 0~40°C / 10~85% RH
Storage Temp / Humidity: -20~60°C / 10~90% RH
Lifetime: 100,000 Hrs
Connectivity
HDMI (2.0) IN: x1
HDMI (2.0) OUT: x1
LAN IN: x1
LAN OUT: x1
USB 2.0: x1
Service
Maintenance: Front Access
System
CPU: CA73*4 1.3GHz
GPU: G52 MC1
DDR: 3GB
ROM: 32GB
Software: Built-in Hisense VisionInfo
Package Solutions
Packing Method: Cardboard Box for Cabinets / Modules & Accessories
Packaging Dimensions (W x H x D):
- 1320 x 969 x 263mm
- 51.97 x 38.14 x 10.35 inch
Net Weight: 18 kg / 39.68 lbs
Gross Weight: 26.6 kg / 58.64 lbs
Certification
Standard Certification: CE, CB
