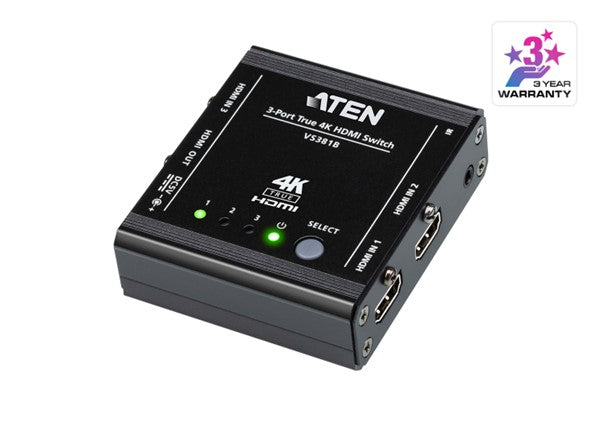

Aten Switch, HDMI, 3 Port - VS381B
• Allows up to 3 HDMI input sources to be transmitted to 1 HDMI output display
• Superior video quality – True 4K resolution of 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) up to 5m; HDR supported
• HDMI (3D, Deep Color, 4K, HDR10+, Dolby Vision, HLG); HDCP 2.2 compliant
• Auto switching mode for auto port selection
The VS381B 3-Port True 4K HDMI Switch with Auto Switching provides users to switch 3 HDMI input sources to an HDMI display. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, HDR, 3D, Deep Color, and HD lossless audio formats. Furthermore, the VS381B offers switching methods between HDMI sources by front panel pushbuttons and IR remote control, enabling users to effortlessly select desired input.
VS381B is a practical solution for auditorium, home theater, meeting rooms, trade shows, shopping centers, and more.
• Allows up to 3 HDMI input sources to be transmitted to 1 HDMI output display
• Superior video quality – True 4K resolution of 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) up to 5m; HDR supported
• HDMI (3D, Deep Color, 4K, HDR10+, Dolby Vision, HLG)
• HDCP 2.2 compliant
• Auto switching mode for auto port selection
• Switching between HDMI input sources via front panel pushbuttons and IR remote control
• Supports IR extension
• Supports 7.1 channel audio output
• Clear LED indication of device status
• Plug-and-play – no software installation required
|
LEDs |
|
|
Input |
3 x HDMI-In (Green) |
|
Power |
1 x Power LED (Green) |
|
Pushbuttons |
|
|
Select |
1 x push button (input selection) |
|
Audio |
|
|
Input |
3 x HDMI Type A Female (Black) |
|
Output |
1 x HDMI Type A Female (Black) |
|
Video Input |
|
|
Interfaces |
3 x HDMI Type A Female (Black) |
|
Impedance |
100 Ω |
|
Max. Distance |

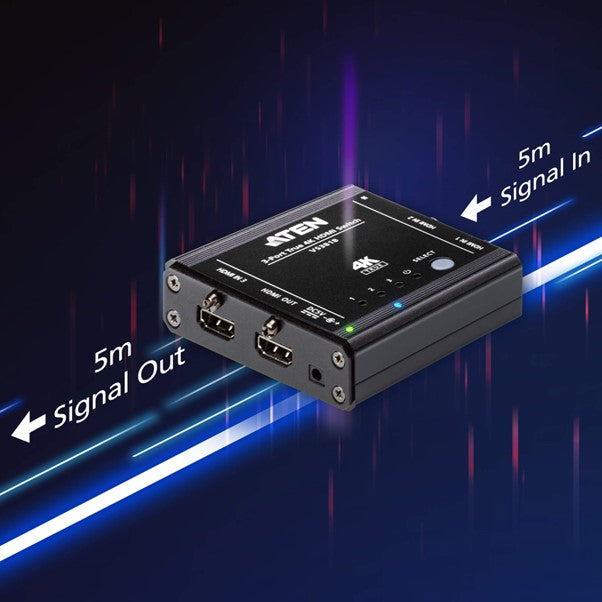

Max 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
|
Video Output |
|
|
Interfaces |
1 x HDMI Type A Female (Black) |
|
Impedance |
100 Ω |
|
Max. Distance |
Max 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
|
Video |
|
|
Max. Data Rate |
18 Gbps (6 Gbps Per Lane) |
|
Max. Pixel Clock |
600 MHz |
|
Compliance |
HDMI 2.0 (3D, Deep Colour, 4K, HDR10, Dolby Vision) |
|
Max. Resolution |
4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
|
Control |
|
|
IR |
1 x Mini Stereo Jack Female (Black) / Max distance@ 5m |
|
Connectors |
|
|
Power |
1 x DC Jack |
|
Power Consumption |
DC5V:1.46W:6BTU/h |
|
Environmental |
|
|
Operating Temperature |
0-40 °C |
|
Storage Temperature |
-20 - 60 °C |
|
Humidity |
0 - 80% RH, Non-Condensing |
|
Physical Properties |
|
|
Housing |
Metal |
|
Weight |
0.15 kg ( 0.33 lb ) |
|
Dimensions (L x W x H) |
7.16 x 7.90 x 2.55 cm |
|
Carton Lot |
20 pcs |
