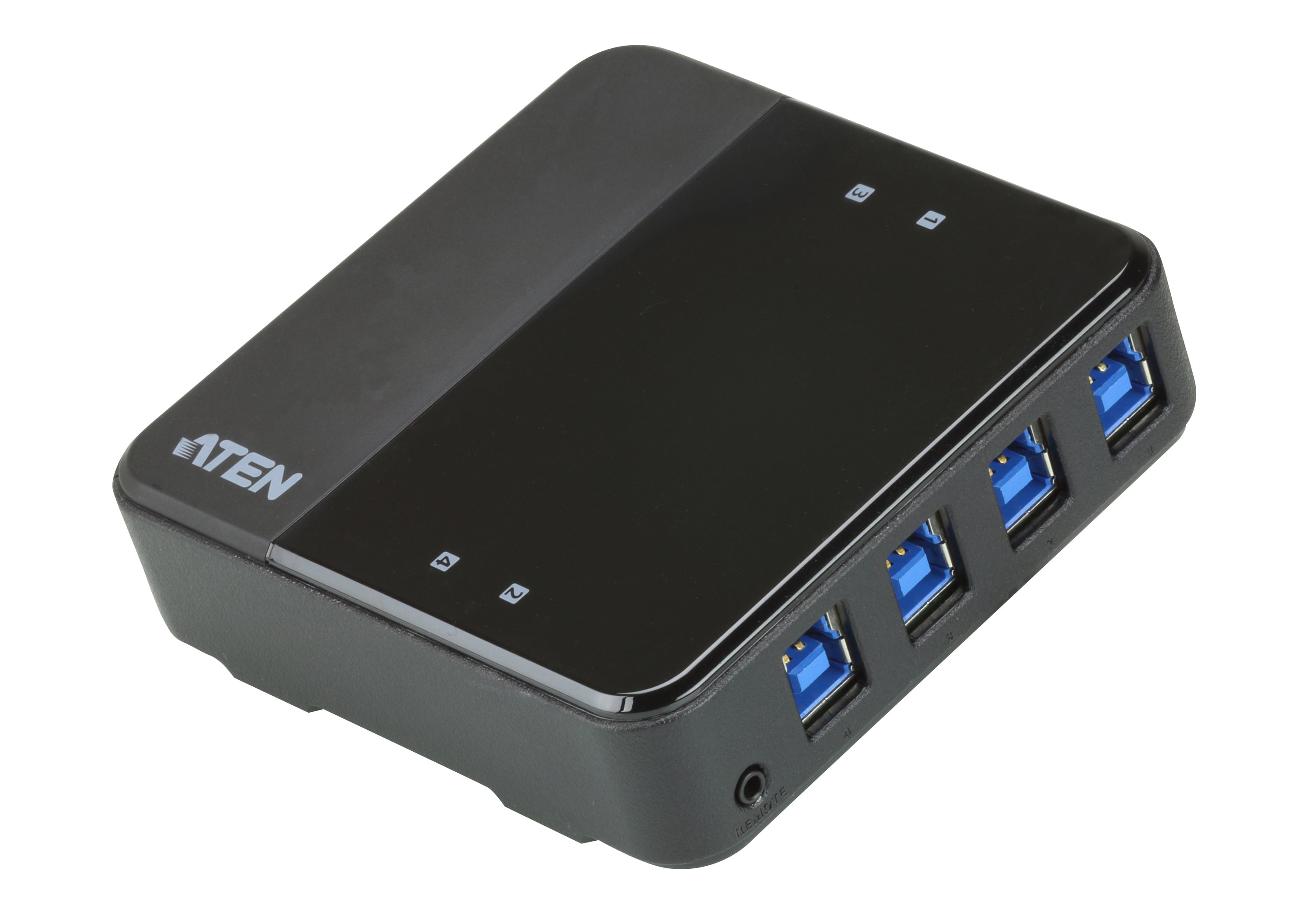

Aten USB Switch - US434
• Enables 4 computers to share 4 USB 3.2 Gen1 devices
• Simple port selection via remote port selector for convenient switch placement
• USB 3.2 Gen1 compliant, supporting data transfer rates of up to 5 Gbps
• Micro USB power jack for additional power supply
ATEN US434 is a 4-port USB 3.2 Gen1 peripheral sharing device that allows users to share four USB devices between 4 different computers. US434 is USB 3.2 Gen1 compliant, which can support data transfer rate up to 5Gbps and backwards compatible with USB 2.0 and USB1.1. It is perfect for high-bandwidth devices, such as USB docking stations or HD cameras.
In addition, US434 also features an external remote port selector that can simplify desktop layout, and select which computer needs to use the USB devices. With its compact and all-in-one design, you can create a space saving, convenient and productive work environment.
Package Contents
1x US434 4 x 4 USB 3.2 Gen1 Peripheral Sharing Switch
4x USB 3.2 Gen1 Type-B to Type-A Cables
1x Remote Port Selector
1x User Instructions
Computer Connections |
4 |
Port Selection |
Remote port selector |
Connectors |
|
Computer |

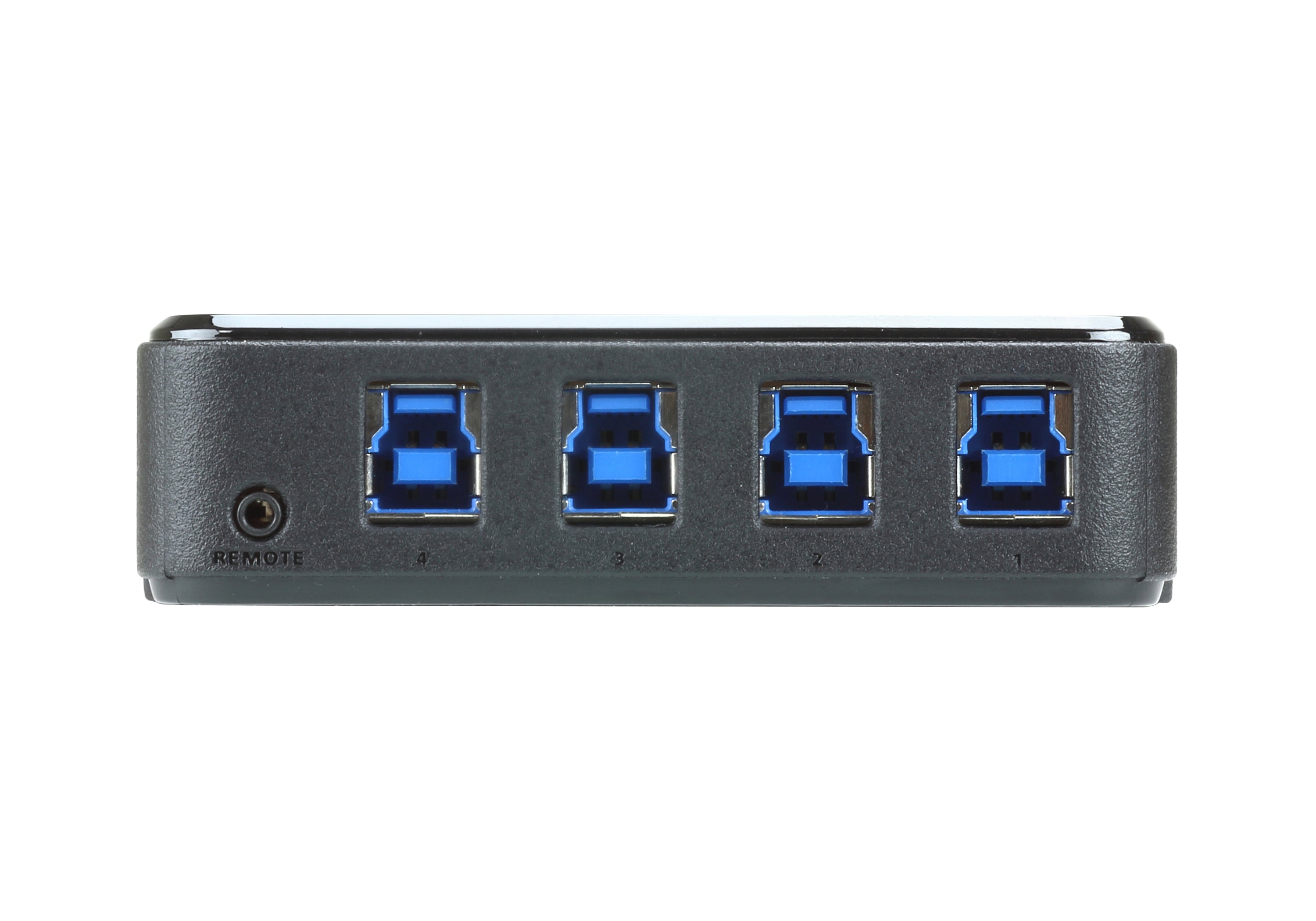

4 x USB Type B Female (Blue) |
Device |

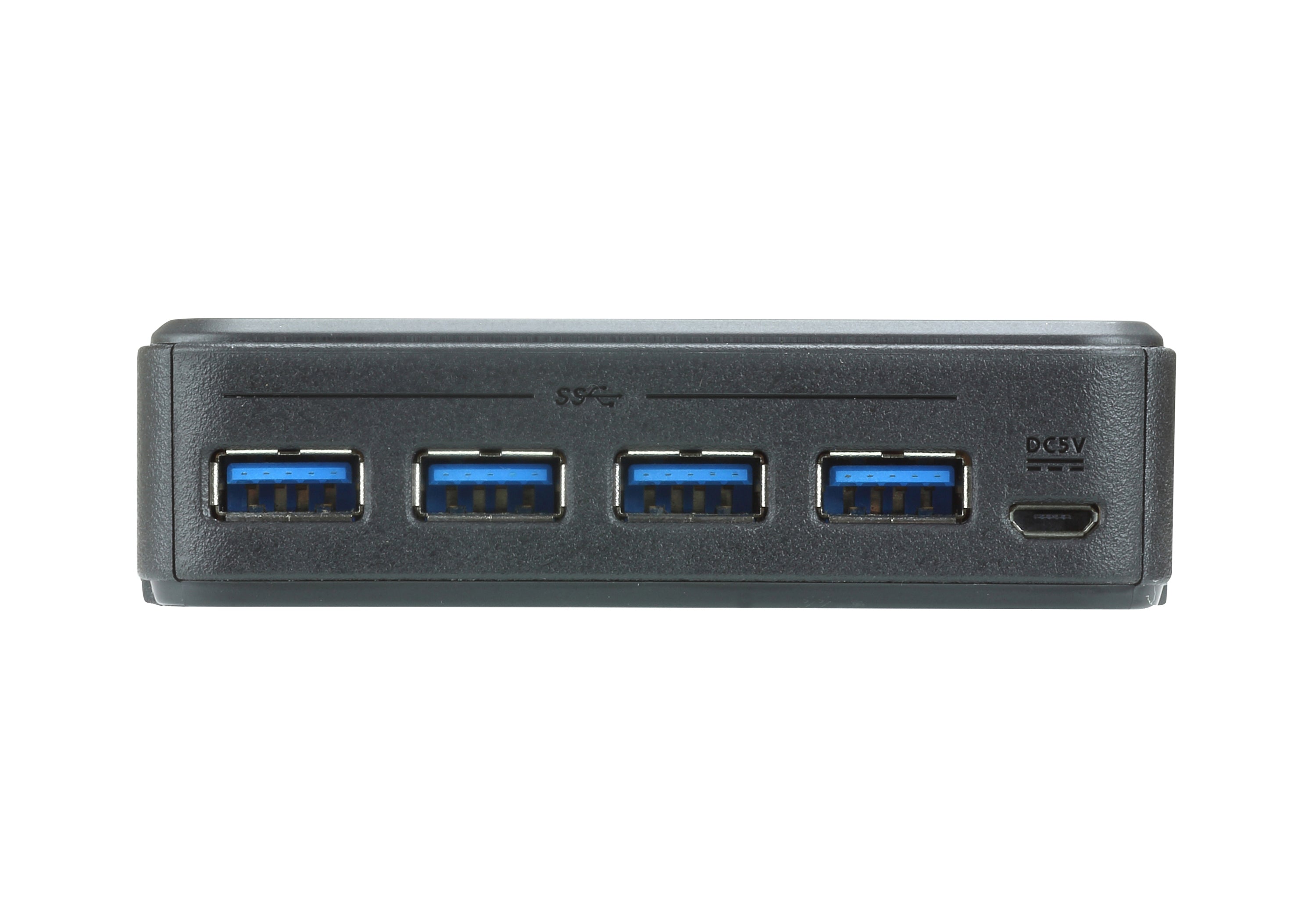

4 x USB Type A Female (Blue) |
Power (Optional) |
1 x USB micro B Female (Black) |
Cable Length |
|
USB Cable |
USB 3.2 Gen 1 B to A Cable 1.2m x 2 |
Remote Port Selector |
1.8 m |
LEDs |
|
Selected |
4 (White) |
Environmental |
|
Operating Temperature |
0–40°C |
Storage Temperature |
-20–60°C |
Humidity |
0–80% RH, Non-condensing |
Physical Properties |
|
Housing |
Plastic |
Weight |
0.13 kg ( 0.29 lb ) |
Dimensions (L x W x H) |
9.37 x 9.30 x 2.68 cm |
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
US434 Datasheet PDF
