Elmo Visualiser, 16 x Digital Zoom, 13MP - MXP3

Elmo
ELMXP3VISEDUCA
R 6,695.00 Ex VAT

• Native 4K output via HDMI/USB

• Multiple output HDMI/RGB/USB

• Only 22mm slim, 460g light

• Digital zoom x16

• One push auto focus

• SD for recording (not for playback)

• Built-in microphone

• 5 years warranty

The MX-P3 delivers the smoothest true-to-life, high-quality image with no delay. It is the first document camera on the market capable of 16x digital zoom at 4K resolution. MX-P3 captures true 4K at 30fps or full HD at 60fps and comes with a built-in microphone.

With an output terminal offering HDMI, RGB, and USB 2.0, seamlessly connect to a wide array of devices. This camera also features an SD card slot.

Weighing only 1.2lbs, the MX-P3’s flexible structure and easy setup make it the perfect solution for presentations on the go.

Use MX-P3 as high resolution webcam.  Plug and play compatibility means no need for divers or software.

16x Zoom in True 4K Ultra HD

The MX-P3 offers 16x digital zoom at 4K resolution, capturing video in True 4K at 30fps or Full HD at 60fps without any loss of quality.

HDMI/RGB/USB 3.0 Outputs

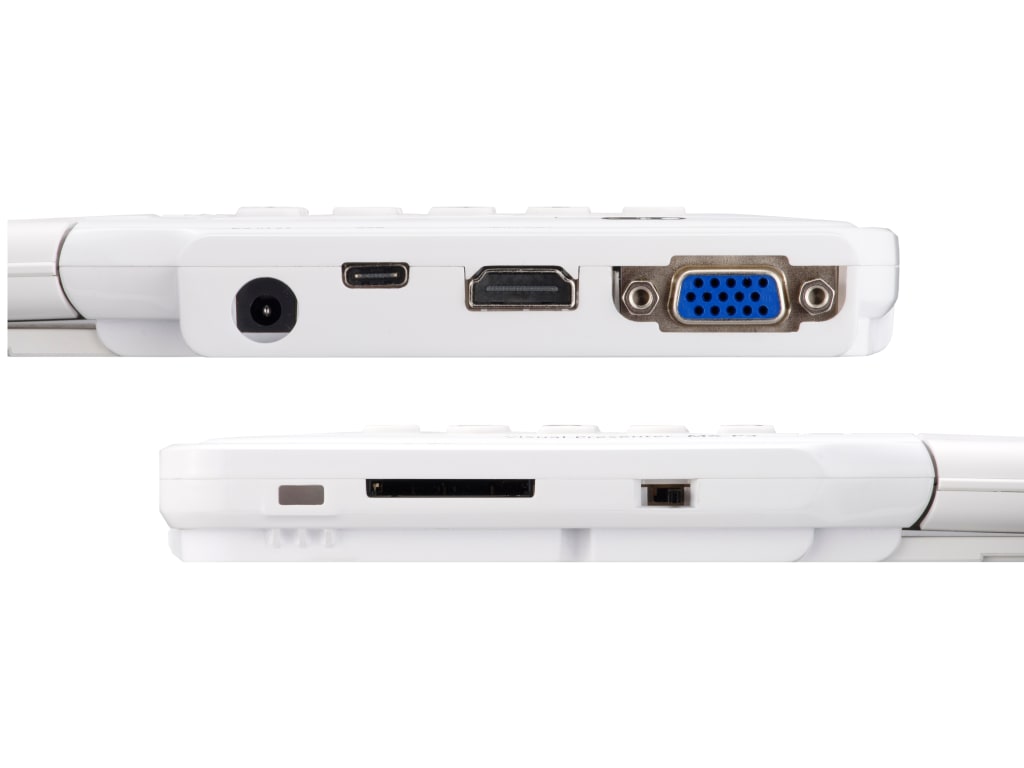

The MX-P3 comes with USB 2.0, HDMI, and RGB/VGA output options to connect seamlessly to a wide variety of devices. MX-P3 also features an SD card slot for saving images and videos.

Lightweight - 1.2lbs

Weighing only 1.2lbs, the MX-P3 is completely portable - making it perfect to take with you for on-the-go presentations.

Flexible

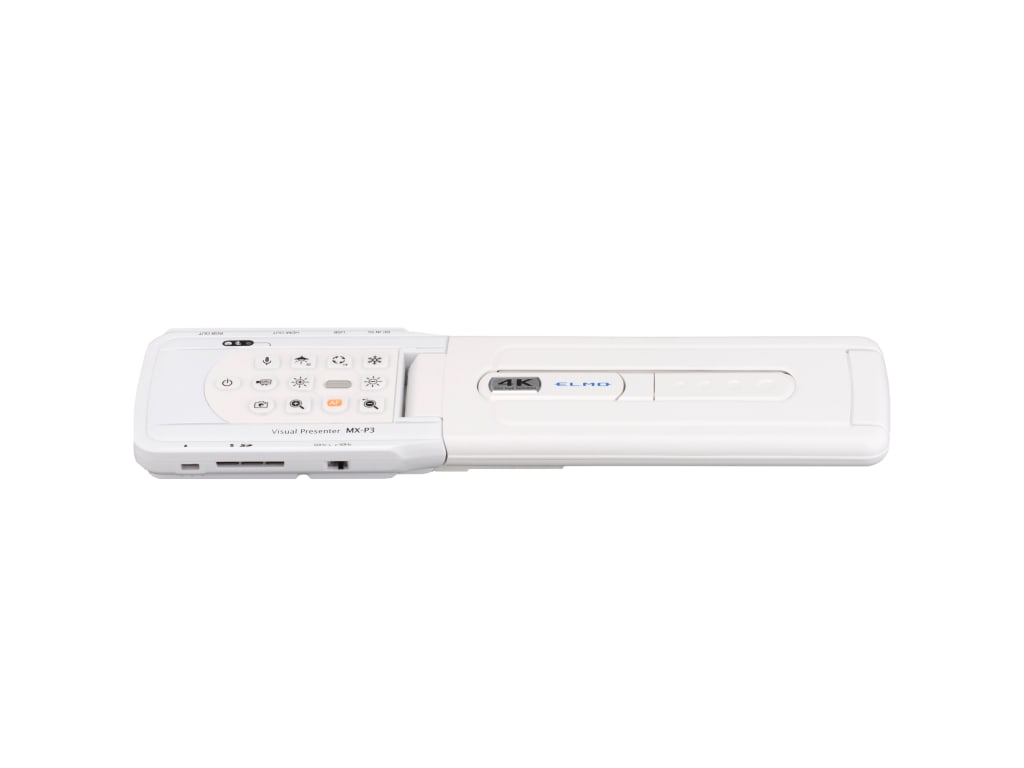

The MX-P3 is equipped to twist, bend, and fold, making it one of the most flexible document cameras in the ELMO line-up. The MX-P3 can fold up as small as many smartphones.

Main Camera

POWER SOURCE

DC5V

POWER CONSUMPTION

4.0W (when connecting USB)

6.0W (when connecting HDMI/RGB)

OUTSIDE DIMENSIONS

W 13.5” x D 3.2” x H 11.9” (Setup)

W 11.4” x D 3.2” x H 0.9" (Folded)

WEIGHT

1.2lbs

EXTERNAL CONTROL TERMINAL

USB 2.0 Type-C x1

Lens

LENS

F=2.0

FRAME RATE

30fps at 4K, 60fps at 1080

ZOOM

16x Digital

FOCUS

Auto (one push)

IMAGING AREA

14.7” x 11.1” 4:3

EFFECTIVE PIXELS

H: 4160, V: 3120

Functions

BRIGHTNESS

Possible (set value 7 levels) Default value: 8

IMAGE ROTATION

0° / 180°

Illumination Device

ILLUMINATION

White LED

MXP3 Datasheet PDF
