Aten Control Touch Panel, 10.1" Gen. 2 - VK330A

The VK330A 10” Touch Panel centralizes system control through an intuitive, responsive interface, allowing quick switching between the ATEN Control System app and third-party applications. Integrated with ATEN’s Room Booking System, it also enables room status updates directly from the panel, streamlining meeting setup. Its compact 10" design and PoE capability make it ideal for mid- to large-sized meeting and conference rooms, where a clearly readable screen and simplified cabling are essential.

• Third-Party Application Control with AppSwitcher

In addition to interfacing with the ATEN Control System, the VK330A also serves as a dedicated, cost-effective touch panel for third-party apps such as video conferencing, device control, or custom room apps, enabling direct control without a separate controller.

• Streamlining Access with In-Room Booking Control

With integration into ATEN Unizon and the Room Booking System, booking a room, checking in or out, viewing room status, and extending a meeting are all just a few taps away on the panel – anytime during a meeting.

• Support and Service in Seconds

With Unizon integration, room support is as easy as tapping the Support Center icon in the upper-right corner of the panel. Simply select the service needed from the on-screen list to submit a real-time maintenance request – such as catering, cleaning, repair, or replacement – all of which can be tracked for progress directly on Unizon.

• Real-Time Video Streaming Preview

The VK330A displays real-time feeds from IP cameras and ATEN Networked AV series video over IP transmitters via native RTSP/ONVIF protocols, enabling direct preview and seamless switching of video sources from the panel.

• Centralized Room Management

With multi-viewer support, multiple rooms can be monitored and controlled from a single VK330A panel, with the entire environment easily managed through seamless switching between different room views.

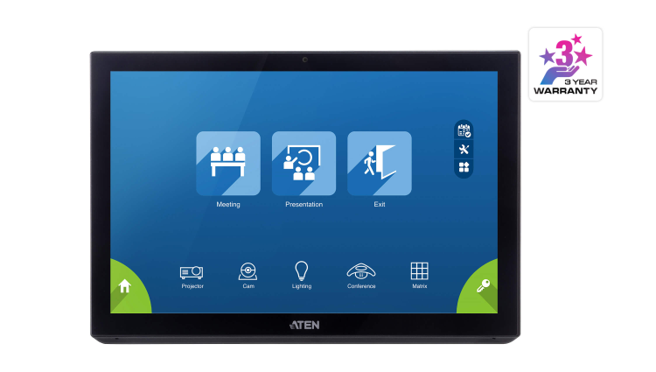

The VK330A features a 10.1” capacitive multi-touch TFT-LCD screen, a high-performance CPU, and the preinstalled ATEN Control System app to work with ATEN Control System, an Ethernet-based management system consisting of controllers, expansion boxes, and configurators that interconnects all hardware devices to enable centralized control of multiple rooms from any mobile device or ATEN Control System interface. When integrating with ATEN Unizon and ATEN Room Booking system, administrators can view room usage and operating status in real-time. In conjunction with the VK401, the system enables exclusive card-access functionality, allowing authorized users to efficiently book and check in meeting rooms to streamline automation of conference room operations. The proximity and light sensor automatically adjusts the screen brightness based on changes in ambient light around the panel, enhancing screen readability while helping reduce power consumption. The stylish narrow bezel and versatile mounting options make it fit well into any modern collaboration space like conference rooms, lecture halls, and boardrooms or high-security areas such as military organizations, hospitals, or government offices.

• Centralized Control via Native App ATEN Control System App

Allows administrators for central control of multiple rooms via profiles

Restricts user access to profiles via password authentication

Synchronization of system control among multiple ATEN Touch Panels, mobile devices, and tablets

Screen Saver – helps energy saving and prolongs the lifetime of the touch screen

Real-Time Video Preview – displays real-time feeds from IP cameras and ATEN VE89 transmitters* via RTSP/ONVIF, enabling preview and seamless video source switching from the panel

AppSwitcher – enables quick switch between windows of different third-party apps running

*Function only applicable to VK2200 / VK1200.
