Aten HDMI True 4k Splitter, 1:08 - VS0108HB
• HDMI 2.0 (3D, Deep colour, 4K); HDCP 2.2 compliant
• Superior video quality – up to True 4K resolutions (4096 x 2160 @ 60Hz 4:4:4)
• Long distance transmission from source to output - up to 6 m
• Built-in bi-directional RS-232 serial control port for high-end system control

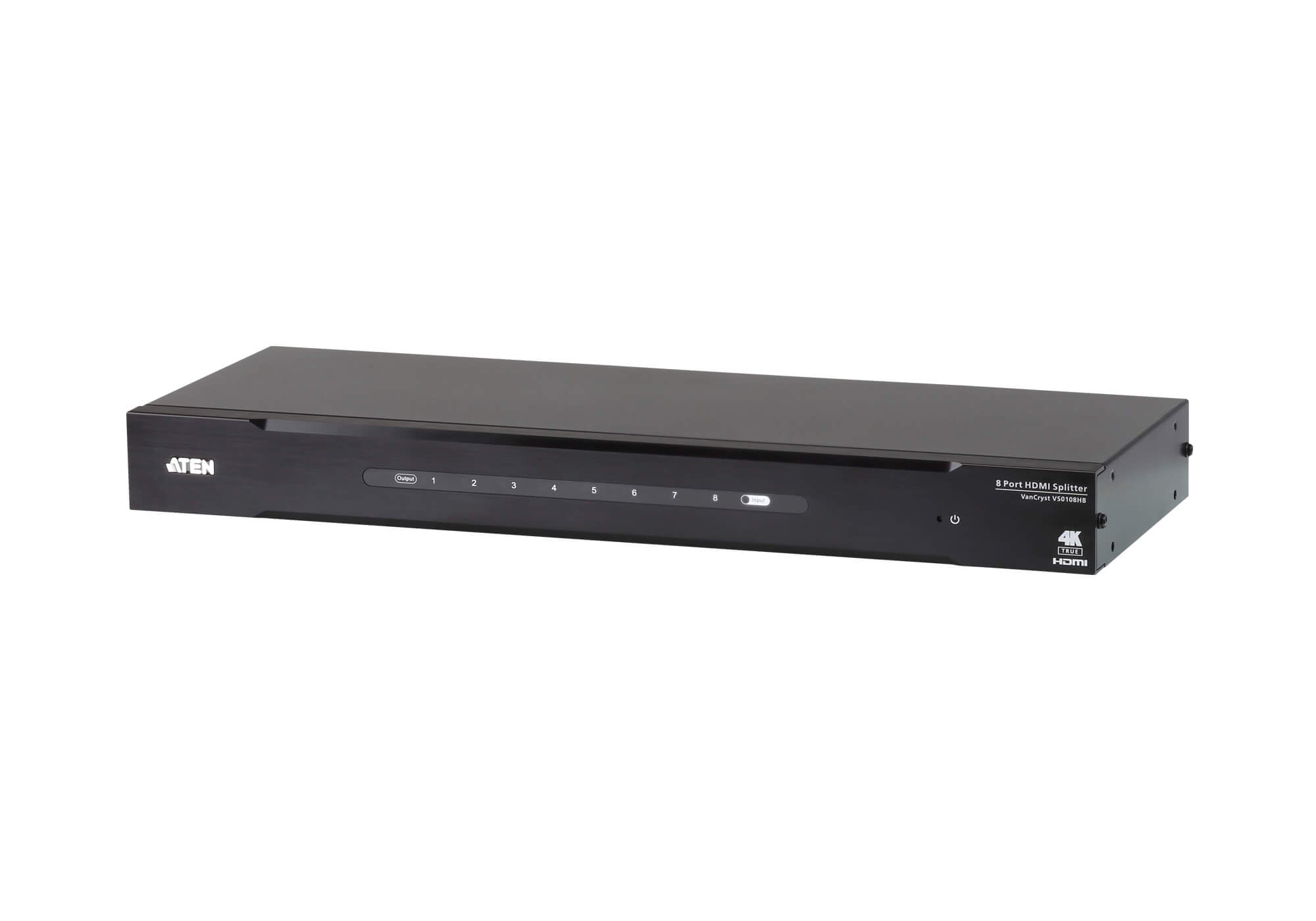

The ATEN VS0108HB is designed for applications that require the routing of one HDMI source to 8 compatible display devices. It supports Dolby True HD and DTS HD Master Audio, video signals up to True 4K, data rates up to 18 Gbps, 3D, and HD lossless audio formats. Featuring ATEN EDID technology, the VS0108HB guarantees continuous EDID communication with connected devices and ensures that the HDMI sources power-up properly and maintain correct video outputs.
Engineered to meet today’s demand of True 4K signal transmission and user- oriented design, ATEN VS0108HB is a powerful solution for a wide range of settings, such as home theatre, commercial settings, educational centres, meeting rooms, or wherever needed to meet application requirements.
Package Contents
1x VS0108HB 8-Port True 4K HDMI Splitter
1x Power Adapter
1x Mounting Kit
1x User Instructions
|
LEDs |
|
|
Input |
1 x LED (Green) |
|
Video Output |
8 X LED (Green) |
|
Power |
1 x LED (Green) |
|
Video Input |
|
|
Interfaces |
1 x HDMI Type A Female (Black) |
|
Impedance |
100 Ω |
|
Max. Distance |
5M at 4K@60Hz (4:4:4) |
|
Video Output |
|
|
Interfaces |
8 x HDMI Type A Female (Black) |
|
Impedance |
100 Ω |
|
Max. Distance |
5M at 4K@60Hz (4:4:4) |
|
Video |
|
|
Max. Data Rate |
18 Gbps (6 Gbps Per Lane) |
|
Max. Pixel Clock |
600 MHz |
|
Compliance |
HDMI 2.0 (3D, Deep Colour, 4K); |
|
Max. Resolution |
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
|
Control |
|
|
RS-232 |
Connector: DB-9 Female (Black) x 1 |
|
EDID Settings |
EDID Slide Switch x 1 |
|
Connectors |
|
|
Power |
1 x DC Jack |
|
Power Consumption |
DC5V:11.95W:56BTU |
|
Environmental |
|
|
Operating Temperature |
0-40 °C |
|
Storage Temperature |
-20 - 60 °C |
|
Humidity |
0 - 80% RH, Non-Condensing |
|
Physical Properties |
|
|
Housing |
Metal |
|
Weight |
2.18 kg ( 4.8 lb ) |
|
Dimensions (L x W x H) |
43.72 x 15.78 x 4.40 cm |
|
Carton Lot |
3 pcs |
|
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
