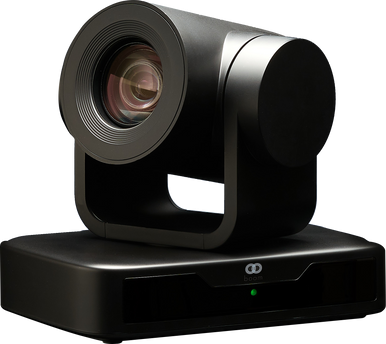

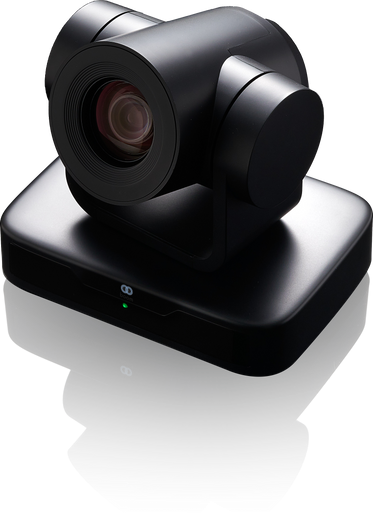

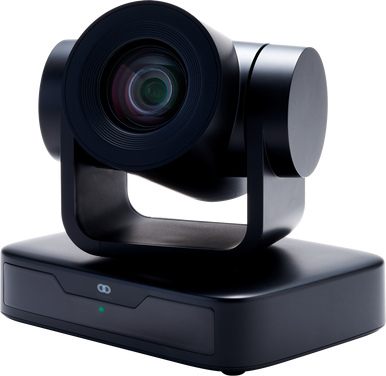

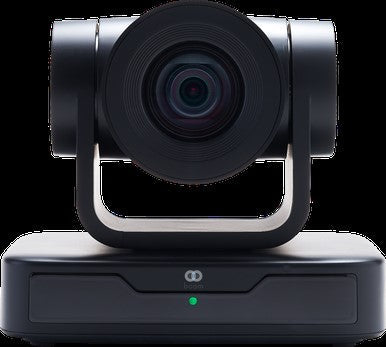

Boom Midi PTZ Huddle/conference Camera, Full HD, 77° FOV, Auto-focus - BM010040
• A compact PTZ camera for superior meetings.
• Boom MIDI combines functionality with performance in a sleek and compact package.
• MIDI provides flexibility in any space with 20x zoom and full Pan/Tilt functions.
• Industry leading CMOS sensor and Advanced Image Signal Processor (ISP) create a vivid, clear image with even brightness, fantastic colour rendering, and high resolution with ultra-smooth video transmission.
• Plug & Play via USB makes setup a breeze.
• Boom MIDI combines functionality with performance in a sleek and compact package. MIDI provides flexibility in any space with 20x zoom and full Pan/Tilt functions. Industry leading CMOS sensor and Advanced Image Signal Processor (ISP) create a vivid, clear image with even brightness, fantastic colour rendering, and high resolution image with ultra-smooth video transmission. Plug & Play via USB makes setup a breeze.
• Capture the room
Excellent video quality in HD resolution plus 20x zoom and 10 remote control pre-sets capture participants and points of interest with ease.
• Quality components
MIDI provides a crystal clear image with true colour rendering and smooth PTZ functions thanks to the industry-leading CMOS sensor and Advanced ISP high SNR with 2D and 3D noise reduction - which translates to a quality user experience.
• Plug & Play Plus
Simple USB plug and play makes setup a breeze and the added versatility with multiple control interfaces (RS485, RS232) and control protocols (VISCA, PELCO-P/D, UVC, IR) provide options for any space.
• Full HD 1920x1080
• PTZ with 20x zoom
• 77° field of view
• Panasonic CMOS sensor
• Control protocol: VISCA, PELCO P/D
• Control interface: RS485, RS232, IR UVC
• Multi codec: H.264, H.265, MJPG
• Remote control w/ 10 camera pre-sets
• USB Plug & Play
• 3-year warranty
Dimensions
- Length: 6.2in/157mm
- Width: 4.4in/113mm
- Height: 5.5in/140mm
- Weight: 2.2lbs/1kg
- USB Y cable: 80in/2m
- Power supply: 8ft/2.4m
- RS232: 6.6ft/2m
Technical Specifications
- Full HD 1920x1080 @30fps
- Sensor: 1/2 .9 Panasonic CMOS image sensor
- Pixels: 2.07MP, 16:9
- View angle: 77°
- PTZ parameters:
- Pan: ±170°
- Tilt: ±30°
- Zoom: 20x (10x optical)
- Pre-sets: 255 (10 with remote)
- Focus: Auto, Manual, One Push
- Video output: USB 2.0, RS232, RS422, RS485
- Video compression: H.265, H.264, MJPG
- Network protocol: VISCA, PELCO-P/D
- Power: DC12V±10%, 1A(Max)
- Temperature: 15°F +120°F(-10°C - +50°C)
- Mounting: Tripod thread, wall & ceiling mount (optional)
Package Contents
- Part number: BM01-1040 US, BM01-2040 EU
- MIDI camera
- IR remote control
- USB Y 2.0 cable (USB A)
- RS232 cable
- Power supply
- Quick guide
Compatibility
- Zoom, Microsoft Teams, Cisco Webex, Google Meet, Bluejeans, GoToMeetings, Skype and more
System Requirements
- Windows 7, 8, 10 or later, Mac OS X, Linux
- USB A port, RS232, RS422/RS485
