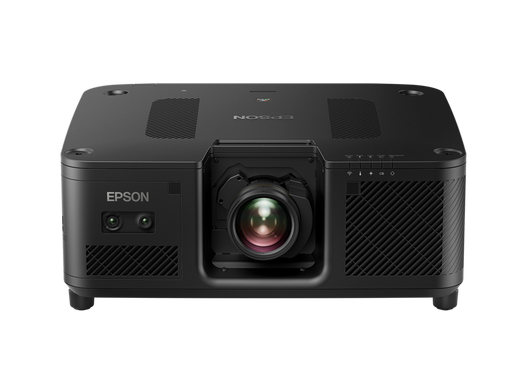

Epson Professional Projector, 30000 Ansi Lumens, 4K resolution, 16:9 Aspect Ratio - EBXQ2030B
• tra-high brightness in a compact form The world’s smallest and lightest 30,000lm 4K projector, enabling powerful large-venue projection with easier transport, handling and installation.
• 4K resolution with high contrast Epson's patented 4K Crystal Motion technology produces extremely sharp detail, high native contrast and accurate colour for demanding visual content.
• Advanced thermal and optical management The Advanced Cooling Engine efficiently manages the internal temperature to ensure stable performance and reliable operation in demanding and high-use environments.
• Flexible and future-ready connectivity Intel® SDM slot compatibility brings support for different AVoIP standards, integrated media players and future connectivity signal standards.
• Robust, low-maintenance design IP6X dust resistance and filter-free design reduces downtime and maintenance effort, supporting reliable operation in challenging rental and fixed environments.
• Enhanced lens range for complete coverage Next-generation lenses deliver full throw ratio coverage from 0.39–11:1, with improved zoom and lens shift for complex installations.
• Compact design that revolutionises project deployment economics
As the world’s smallest and lightest 30,000lm 4K projector, the EB-XQ2030B reduces physical and logistical constraints without compromising performance. Its compact footprint lowers transport, storage and install costs, while making handling and maintenance easier. For rental fleets and fixed installations alike, this translates into improved flexibility, faster setup and a lower total cost of ownership across the projector lifecycle.
• High-impact 4K imagery for large-scale installations
Marvel at the clarity produced by Epson's 4K Crystal Motion technology. When optical precision and outstanding colour performance are critical, you can rely on the EB-XQ2030B to produce crystal clear details and vibrant colour with unbelievable contrast, ensuring content is reproduced as intended. From large-scale outdoor mapping to immersive visitor attractions, the EB-XQ2030B redefines ultra-high brightness projection to create truly engaging experiences that drive repeat visits.
• Engineered for stability and reliability
At the core of this flagship 4K projector is the Advanced Cooling Engine, a collection of patented cooling technologies that efficiently manage the temperature of the individual components of the laser light source and optical engine. Engineered to handle the demands of 30,000 lumens brightness, this controlled thermal environment ensures consistent operation and performance longevity, even in demanding large-scale projects.
• Connectivity that adapts to every project
The EB-XQ2030B supports a wide range of built-in standard inputs and outputs, complemented by Intel® SDM slot compatibility for modular expansion. This allows system designers to integrate AVoIP solutions, media players or future connectivity standards as required. The result is simplified cabling, reduced installation time and a future-proof platform aligned with long investment cycles.
Technology
Projection System
3LCD Technology, RGB liquid crystal shutter
LCD Panel
1,04 inch with C2 Fine
Colour Light Output
30.000 Lumen- 21.000 Lumen (economy) In accordance with IDMS15.4
White Light Output
30.000 Lumen - 21.000 Lumen (economy) In accordance with ISO 21118:2020
Resolution
4K (3840 x 2160)
Aspect Ratio
16:9
Contrast Ratio
Over 5.000.000 : 1
Native Contrast
3.000 : 1
Light source
Laser
Laser Light source
20.000 hours Durability High, 30.000 hours Durability Eco
Keystone Correction
Manual vertical: ±45 °, Manual horizontal ±30 °
Colour Video Processing
10 Bits
Colour Reproduction
Upto 1.07 billion colours
HDR support
HDR10, HLG
Optical
Throw Ratio
0,34 - 11,00:1, Varies by lens
Zoom
Motorized, Varies by lens
Lens
Optical
Lens Shift
Varies by lens
Screen Size
Varies by lens
Projection Distance Wide
Varies by lens
Projection Distance Tele
Varies by lens
Projection Distance Wide/Tele
Varies by lens
Projection Lens F Number
Varies by lens
Projection Lens Focal Length
Varies by lens
Projection Lens Focus
Motorized
Offset
Varies by lens
Interchangeable Lens
Yes
Standard Lens
Not included
Mechanical shutter
Yes
Connectivity
Interfaces
USB 2.0 (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n, HDMI in (2x), HDMI out, HDBaseT, Jack plug out, Near Field Communication (NFC), 12G SDI Input, 12G SDI Output, USB content playback, Remote
Network Protocol
HTTPS, SNMP, ESC/VP.net, PJLink
Advanced Features
Security
Kensington lock, Security bar, Control panel lock, Padlock, Security cable hole, Wireless LAN security, Password protection
Other features
21:9 aspect ratio support, A/V mute, Auto Power On, Auto source search, CEC compatible, Daisy chain Multi-Projection, Direct Power on/off, Edge Blending, Frame interpolation, Freeze image, Horizontal and vertical keystone correction, Integrated camera for image calibration, Lens position memory, Long light source life, OSD copy function, Point correction, Quick Corner, Schedule Function, Web Control, Wireless LAN capable
Video Colour Modes
Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
Projector control
via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery
Sealed Light Source Module
Yes
Sealed Optical Engine
Yes
General
Power consumption
1.895 Watt (Normal On-Mode), 1.180 Watt (Eco On-Mode), 2.090 Watt (Normal Peak-mode), 1.546 Watt (Eco Peak-Mode), 1 Watt (Energy saving standby)
Heat Dissipation
7.106 BTU/hour (max)
Supply Voltage
AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions
620 x 530 x 205 mm (Width x Depth x Height)
Product weight
34,4 kg
Noise Level
Normal:48 dB (A) - Economy:39 dB (A)
Supported Temperature
Storage -10° C - 60° C
Supported Humidity
Operation 20% - 80%, Storage 10% - 90%
Improper installation of the projector on a ceiling or wall may cause it to fall, leading to potential injury or damage. To prevent this, ensure the ceiling mount is securely fastened using all mounting points specified in the projector’s user guide which is available to download from our support website (www.epson.eu/support). We recommend the use of Epson-approved ceiling mounts that are compatible with the projector model. Additionally, attach a safety wire of adequate strength to secure the projector to the ceiling mount.
If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.
We recommend that the equipment be inspected on a regular basis, either by the user or by a qualified professional, to ensure continued safe operation.
If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
Included Software
Epson Creative Projection, Epson Projector Config Tool, Epson Projector Content Manager, Epson Projector Management, Epson Projector Professional Tool
Room Type / Application
Auditorium, Projection Mapping, Rental / Staging, Signage / Retail, Visitor Attraction
Positioning
Ceiling Mounted, Floor, Truss Mount
Colour
Black
Other
Warranty
36 months Carry in
EBXQ2030B Datasheet PDF
