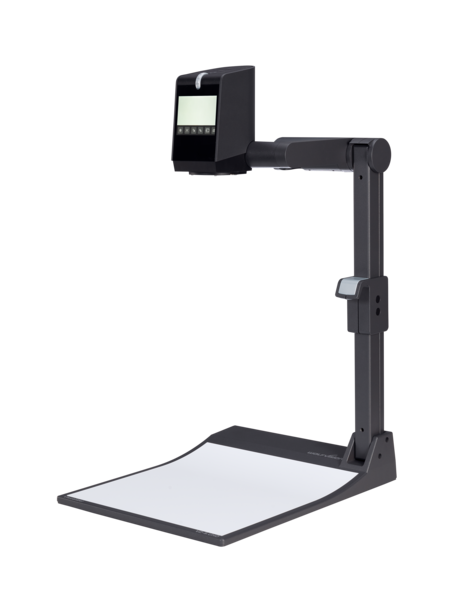

Wolfvision Visualiser - VZ8UHVERA
Next generation 4K UHD Visualizer imaging
The VZ-8.UHD is a native 4K UHD Visualizer system. It combines crystal clear on-screen images, a touchscreen control and preview monitor, plus 4K recording and streaming functionality, together with newly designed optical and electronic systems.
Also now available with an optional built-in HDBaseT module, enabling delivery of uncompressed 4K60 content over longer distances without compromising image quality.
With the VZ-8.UHD, we set the standard worldwide for innovative, user-friendly, networked AV ready, high performance Visualizer systems.
• Native 4K UHD Visualizer system
• Touchscreen control & preview monitor
• 4K recording & streaming
• Remote management & updating
High performance 4K imaging
Ultra-high definition camera with 4K UHD output resolution for presentation of content materials in unrivalled image quality.
Powerful zoom range
64x zoom for incredible flexibility when displaying content on-screen. Images are always crystal clear, even when zooming in closely on materials
4K recording & streaming
Simultaneous 2160p / 30fps recording and streaming. Use this networked AV-ready Visualizer for capture and distribution of content materials in outstanding quality.
Focus on the content
High speed continuous autofocus, manual focus, plus an easy-to-use 9-point touch and focus mode, ensure crisp presentation of all content materials.
Touchscreen preview monitor
LCD touchscreen monitor for easy positioning of objects on the working surface, plus swipe-through advanced settings menu.
Imaging around the room
90° rotating camera head with shake-free mount for picking up images and video from outside of the working surface.
|
System |
Desktop Visualizer |
|
Availability |
Worldwide |
|
Camera |
CMOS 1/1.8" |
|
Pictures per second |
60 frames (in all resolutions) |
|
Native pixels of camera sensor |
3840 x 2160 (8,294,400) |
|
Native signal output |
2160p UHD 4.4.4 (3840x2160) |
|
Converted output signals (4:3 and 5:4) |
|
|
Converted Widescreen output signals (16:9 and 16:10) |
1080p FHD (1920x1080), 720p HD (1280x720) |
|
Resolution (measured) |
1,600 lines |
|
Lens |
f = 6.8 - 110 mm |
|
Zoom range |
64 x zoom (16x optical, 4x digital), multiple-speed zoom wheel |
|
Max object height on working surface |
130 mm (5.1“) in tele position 370 mm (14.6“) in wide position |
|
Max. pick-up area on working surface |
Length: 283 mm (11.1"), Width: 518 mm (20.4") |
|
Min. pick-up area on working surface (in full resolution, with optical zoom) |
16:9 (29.5 x 16.6 mm / 1.2“ x 0.7“) |
|
Min. pick-up area on working surface (with digital zoom) |
16:9 (7.4 x 4.2 mm / 0.3“ x 0.2“) |
|
Max. pick-up area outside of working surface |
Unlimited |
|
Depth of focus on small object (42 x 33 mm) |
3 mm (0.1“) |
|
Depth of focus on large object (360 x 270 mm) |
120 mm (4.7“) |
|
Brightness control |
Automatic and manual |
|
White balance adjustment |
Automatic and manual |
|
Adjustable colour settings |
Yes |
|
Focus modes |
High speed continuous autofocus, 9-point touch & focus, manual focus |
|
Synchronized Lightfield for easy object positioning |
|
|
Synchronized Lasermarkers for easy object positioning |
|
|
Centre Lasermarker for easy object positioning |
|
|
Built-in LCD preview monitor |
Yes, touchscreen LCD control & preview monitor (3.5“ 320x240 px, RGB) |
|
Live to Freeze comparison |
Side by side, 2x 1080pHD on a 4K screen |
|
Save user defined settings on USB stick |
|
|
On-screen menu and on-screen help |
On-screen menu, touchscreen with swipe-through menu & password-protected advanced functions |
|
Rotating camera head for recordings outside of the working surface |
90° towards audience |
|
Light source |
Maintenance-free high-brightness LED light system (high light output, low power consumption), lamp lifetime: 30,000 hours |
|
Reflection free working area |
Yes |
|
Shadow-free illumination |
|
|
Illumination of hollow objects |
|
|
Free firmware updates |
Yes, via LAN and USB |
|
vSolution Link Pro software for remote administration & firmware updates |
Yes, included (for Windows 10 & 11, Windows Server, Windows Web Server, macOS) |
|
Swivel plate with 90° rotation |
|
|
Intelligent folding system |
Articulated arm, with 2-step setup |
|
User programmable presets |
3 |
|
Seamless cross fading between image sources |
Yes |
|
Image memory |
8GB + additional storage on USB stick or external hard drive |
|
External computer input with digital scaler |
Yes, HDMI x2, up to 4K UHD 60fps pass through |
|
UVC Driver for Windows, Linux and macOS, PTP (Picture Transfer Protocol) |
Yes |
|
RGB output |
|
|
HDMI output |
Yes |
|
HDBaseT 2.0 |
Optional x1 (Standard HDMI output can be used additionally, but only in the same resolution as HDBaseT output) |
|
USB ports |
USB 3.0 device port, 2x USB 2.0 host ports |
|
Ethernet/LAN port |
Yes |
|
LAN web interface |
Yes |
|
LAN streaming modes (multicast and unicast): |
RTP H.265 + audio, RTP H.264 + audio, RTP MJPG + audio |
|
Advanced controlling with professional protocols |
Yes, via LAN and USB |
|
Additional security functionality (disabling snapshot, video recording, and freeze functionality) |
Yes |
|
Video recording |
Yes, 2160p UHD, up to 30 fps |
|
Audio |
Yes, via HDMI In and HDMI Out |
|
Dimensions in operation (L x W x H) |
392 mm x 312 mm x 613 mm (18.4“ x 12.3“ x 24.1“) |
|
Dimensions folded (L x W x H) |
392 mm x 312 mm x 140 mm (18.4“ x 12.3“ x 5.51“) |
|
Weight |
4.95Kg (10.9lbs) |
|
Operating temperature / relative humidity |
0°-40°C (32°-104°F) / 40-60% |
|
Remote control |
Optional (supplied free of charge on request) |
|
Anti-theft devices |
T-Lock (Kensington® Lock) and table lock bolt |
|
Tripod mount / ceiling mount |
|
|
Power |
External desktop power pack: multi range 100-240V, 40W (Ver. A), 45W (Ver. B),(length of power cord: 1,8 m) |
|
Optional accessories |
Dry-erase working surface |
|
Included accessories |
User manual, Power supply with cord 1.8m (5'11") |
|
Made in |
EU / Austria |
|
Warranty |
5 years |
